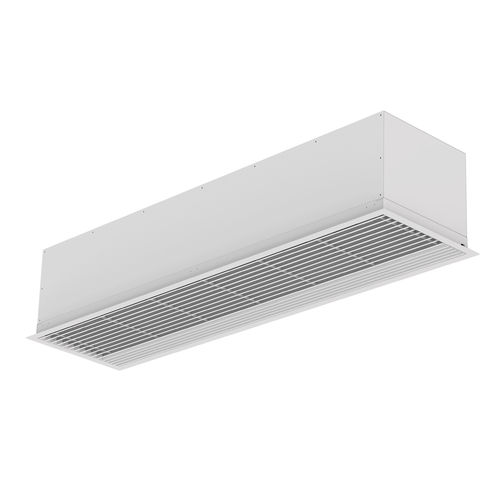

Recessed air curtain COMPACT

commercialindustrialfor suspended ceilings

The COMPACT curtain is the only one specially designed for non-heating applications. This recessed model has a diffuser grille with an integral view, and a self-supporting frame for installation in false ceilings. The suction grille is white, but can be customised with a wide range of colours available in our catalogue. Compact and low profile air only recessed air curtain, with full grille view, specially designed for applications without heating. Self-supporting casing construction made of galvanized steel plate, ready to be installed recessed in a false ceiling. Inlet grille (free of maintenance) made with aluminium profiles and blow-out nozzle, integrated in a single white frame colour RAL 9016. Other colours are available on request. Anodized aluminium outlet vanes, airfoil shaped Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. “A” type without heating, air only. Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
