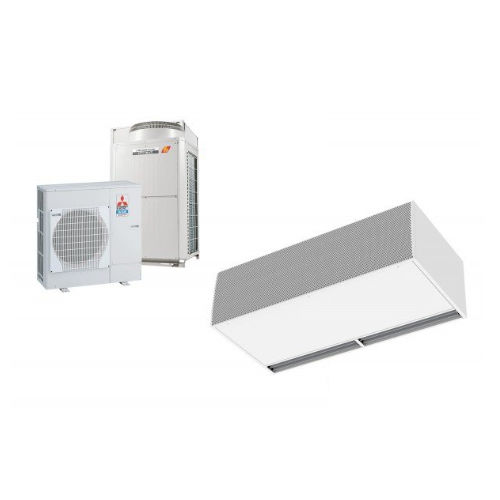

Ceiling-mounted air curtain WINDBOX DX LXL

wall-mountedindustrialcommercial

Energy saving heat pump air curtain: Up to 70% reduction in costs and CO2 emissions (heating mode). Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request. Two frontal grille options: Industrial perforated (by default), commercial microperforated. Internal prefilter included. Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. Includes only heating direct expansion coil with installed temperature sensors. Under request it can be modified to work in cooling and heating mode (not recomended) with optional condensate water pump. Plug&Play control panel CS-5DX-NE slave DX with 5 speeds selector and 10m telephone cable included. DX 1:1: Optional: Advanced Clever Control (programmable, automatic, intelligent, energy savings, Modbus RTU for BMS...) with special program to work in cooling mode which avoids water condensation. It regulates cooling power to maintain air speed and get the environments separation. Ready to connect to MITSUBISHI ELECTRIC Power Inverter outdoor heat pump unit (R410A/R32) with expansion valve, not included, the customer should purchase it. Requires MITSUBISHI ELECTRIC DX Interface KIT with programmable control adapted for air curtain, please consult. DX VRF: Ready to connect to MITSUBISHI ELECTRIC VRF outdoor heat pump unit (R410A), not included, the customer should purchase it.
