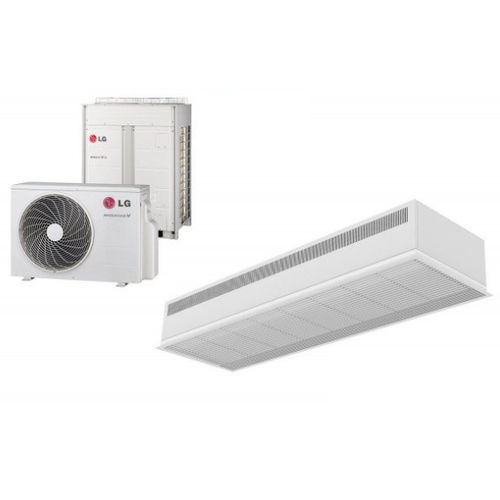

Recessed air curtain RDAM ECM 1000 DX8-LG

industrialcommercial

Compact and low profile recessed air curtain with full grille view and energy savings heat pump: Up to 70% reduction in costs and CO2 emissions (heating mode). Self-supporting casing construction made of galvanized steel plate, ready to be installed recessed in a false ceiling. Inlet grille (free of maintenance) made with aluminium profiles and blow-out nozzle, integrated in a single white frame colour RAL 9016. Other colours are available on request. Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans. Includes only heating direct expansion coil with installed temperature sensors. Plug&Play control panel CS-5DX-NE slave DX with 5 speeds selector and 7m telephone cable included. DX 1:1: Ready to connect to LG Inverter outdoor heat pump unit (R410A/R32) with expansion valve, not included, the customer should purchase it. Requires LG DX Interface KIT adapted for air curtain and programmable control, please consult. DX VRF: Ready to connect to LG VRF outdoor heat pump unit (R410A) and expansion valve, not included, the customer should purchase it. Requires LG VRF Interface KIT adapted for air curtain and programmable control
