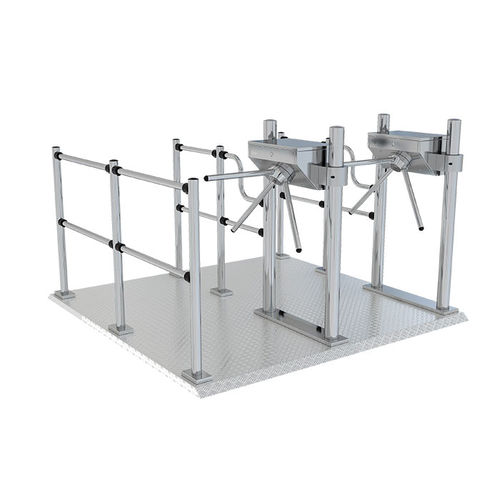

Tripod turnstile AKT - SKIPASS

securitystainless steelfor public building

► Ski and Cable Car Centers Access Control System. ► Thermostat heater internal protection scheme. ► Main Body structure up and down adjustable. ► Stainless Side seperator. ► Anti Slip Base System. Material - Main Body: AISI- 304 - Stainless Steel - Scotch Brite (Op. AISI-316 Quality) Tripod Arms: Q32 mm dia - Stainless Steel - Arms can be dismantled or mounted one by one separately. Rotor Systems - With rotating control; tripod arms are positioned at 120 degrees. Rotation Control - Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism. Energy / Operating Voltage - 110 - 240V AC 50/60 Hz (+/- %10) 24V DC Control Systems - All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs. Passage Direction - Bi-Directional operation feature. Entrance-Exit. Thermostat - It stabilizes the efficiency of the working conditions of the mechanical and electronic structure inside the turnstile in extremely cold environments. Number of Passage Lanes - Single Unit Button Control Unit ► Provides remote control in security huts, security rooms ► “Entry - Exit - Emergency” modes ► BT-1 and BT-2 type options Counter ►8-digit segment display is available. ►To be able to keep the memory of a power failure, be able to count on dry contact and voltage, reset capability. ► 10 years battery life.
