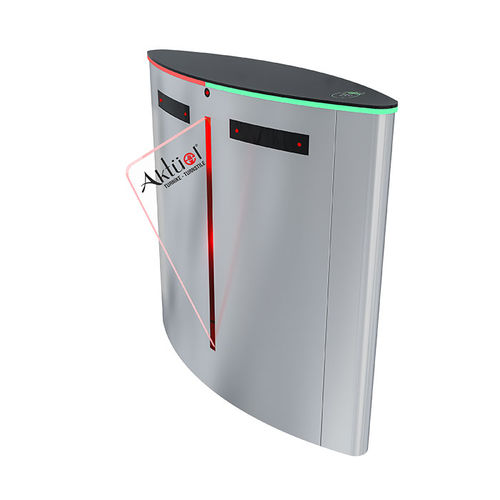

Security speed gate HG - 100 - S
glass

security speed gate
security speed gate
security speed gate
security speed gate
security speed gate
security speed gate
security speed gate
Add to favorites
Compare this product


Characteristics

Other characteristics
security, glass

Description

HG-100 Series are durable products that can be used indoors. Provides access and access control in areas requiring moderate security. With its compact design, it provides the perfect solution for assembly areas where aesthetics and elegance are important. Material - Main Body: AISI- 304 Stainless Steel Wings: 15 mm plexiglass Top cover: Black glass with 10mm tamper. Standard Dimensions - 30 x 100 x 98 cm ( W x L x H ) Energy / Operating Voltage - 110 - 240V AC 50/60 Hz (+/- %10) 24V DC Control Systems - All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs. Movement Mechanism - Brushless DC Motor Electronic Control Unit - PLC control unit Flow Rate - 20 Passage / Minutes / Normally Standard Operating Temperature - -20° C / + 68° C IP Rating - IP 44 Number of Passage Lanes - Single Unit Wing Movement - Wings Retracting into Body Fan Movement System Side Led Stripes - Passage Free - Green Passage Closed - Red Standby - Blue Floor Mounting Plate ► Ease of modular installation with anti-skid bottom platform. ► Ease of installation in difficult ground conditions. ► Front and rear ramp system for easy access. Button Control Unit ► Provides remote control in security huts, security rooms ► “Entry - Exit - Emergency” modes ► BT-1 and BT-2 type options Access Control Device Applications ►Card Pass Readers ►Finger Print, Biometric Device ►Barcode Reader
