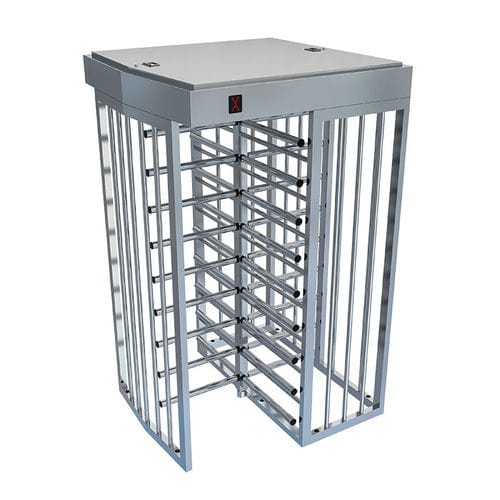

Tripod turnstile AKT - 100 - S
boxfull-heightsecurity

tripod turnstile
tripod turnstile
tripod turnstile
tripod turnstile
tripod turnstile
tripod turnstile
tripod turnstile
Add to favorites
Compare this product


Characteristics

Type
tripod, full-height, box
Other characteristics
security, stainless steel
Market
for public buildings

Description

Full Height Type Turnstiles are durable products that can be used indoors and outdoors. Provides access and access control in areas requiring high levels of security. Material - Main Body: 304 - Stainless Steel (Op. 316 Quality) Arms: 304 - Stainless Steel Standard Dimensions - 135 x 130 x 220 cm (W x L x H ) Rotor Systems - With rotating control; tripod arms are positioned at 90 degrees Rotation Control - Self centering and smooth operation is handled by means of spring and hydraulic damping mechanism Energy / Operating Voltage - 110 - 240V AC 50/60 Hz (+/- %10) 24V DC Control Systems - All inputs are opto-coupler protected. Controlled by dry contact or grounding input. Compatiable with all access control systems that provide dry contact or grounding outputs. Passage Direction - Bi-Directional operation feature. Entrance-Exit Indicators Features - Entrance - Green Arrow / Exit - Red Cross Flow Rate - 20 Passage / Minutes / Normally Standard Number of Passage Lanes - Single Unit Operating Temperature - -20° C / + 50° C IP Rating - IP 54 Floor Mounting Plate ► Ease of modular installation with anti-skid bottom platform. ► Ease of installation in difficult ground conditions. ► Front and rear ramp system for easy access. Manuel Control Box - Fixed ► Manual control box in the upper part of the turnstile, inside the locked compartment. ► Control of “Input, Output, Emergency” modes with security personel in emergency situations. Button Control Unit - Independent ►BT-1 and BT-2 type options, usually used in security booths or security rooms, for remote control of “In, Out, Emergency” modes.
