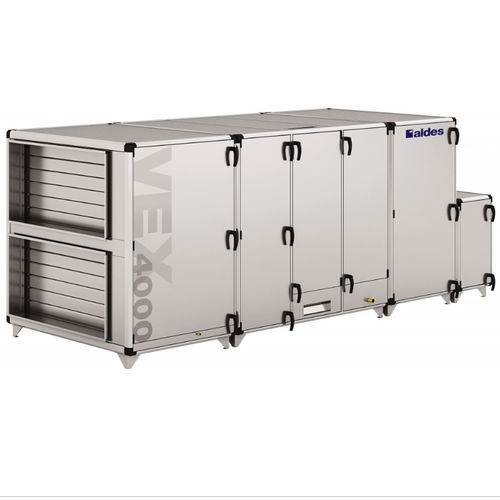

Modular Air Handling Units.
10 models – up to 30 000 m3/h.
Energy performance.
Low noise level.
Easy maintenance and installation.
Eurovent Cerficiation (AHU).
Construction using aluminium profiles and double-skinned panels.
External finish in Aluzinc AZ185: corrosion class C4. Please consult us for other finishes.
Mineral wool insulation : 50 mm (Class A1 from DIN4102), density 65 kg/m3.*
EN1886 values: D2, L1/L1, T2, TB3 (TB2 available shortly) F9.
EC Motor with low consumption impellor, with optimised SFP thanks to the direct drive, centrifugal impellers.
Easy access and maintenance: rail mounted components, lit inspection hatches (optional), doors on adjustable hinges, removable with lockable handles.
High efficiency rotary heat exchanger (Eurovent AARE), with 4 efficiency levels. Purge section as an option to preserve the quality of the indoor air.
4 types of heat exchanger:
Aluminium (as standard).
Hygroscopic.
Sorption: ideal for hot and humid climates.
Epoxy: ideal for corrosive atmospheres (i.e.: sea air).
Cross-flow heat exchanger (as per ERP 2016) in standard aluminium or epoxy.
Stainless steel condensate tray, resistant to corrosion, and integrated modular bypass.
In-line duct connection or choice of two vertical fixings.
Rectangular connections.
Choice of left or right side for equipment fittings.
Choice of filters to guarantee air quality: dihedral filters ISO ePM10 50% (M5) / ISO ePM 65% (F7) / ISO ePM1 80% (F9) or ISO ePM 65% (F7) activate carbon.
Integrated switch.
EXcon 100% Plug & Play control:
Constant airflow.
Constant pressure.
