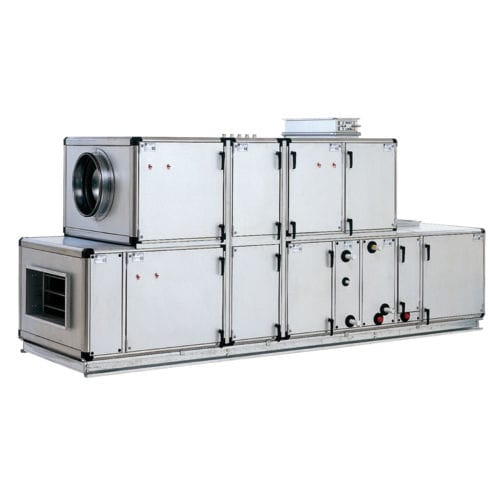

Server heat exchanger VEX5000

Modular Air Handling Unit for heat recovery or only exhaust/supply air. 8 models – up to 50 000 m3/h. Wide airflow range. High efficiency rotary heat exchanger (Eurovent AARE) with choice of efficiency level. Extreme temperature resistance. Eurovent Cerficiation for all unit. CE-conformity. Construction using galvanised steel profiles and double skinned panels. External finish in Aluzinc AZ185: Corrosion class C4. Insulation : mineral wool 50mm, density 70 kg/m3. Values EN1886: D2, L1/L2, T3, TB3, F9. AC motors, impeller fans or axial ZerAX. Easy access and maintenance: rail mounted components, lit inspection hatches (optional), doors on adjustable hinges, removable with lockable handles. High efficiency rotary heat exchanger (Eurovent AARE) with choice of efficiency level Can be delivered in sections (depending on size). Integrated purge section to preserve the quality of air indoors. 3 types of rotary heat exchanger: Standard aluminium with condensation. Hygroscopic. Epoxy: ideal for corrosive atmospheres (i.e.: sea air). Cross-flow heat exchanger (as per ERP 2016 and dependant on model) as standard aluminium or epoxy. Stainless steel condensates tray and integrated modulated bypass, resistant to corrosion, depending on version. Run-around coil (Twin coil) heat exchanger. Choice of filters to guarantee air quality: ISO Coarse 60% (G4) or ISO ePM10 50% (M5) flat or dihedral filters, ISO ePM1 65% (F7) dihedral filters. Other types on demand. Integrated switch, depending on model. EXcon 100% Plug & Play control: Constant airflow. Constant pressure. Variable airflow by CO2/VOC sensor (0-10 V signal).
