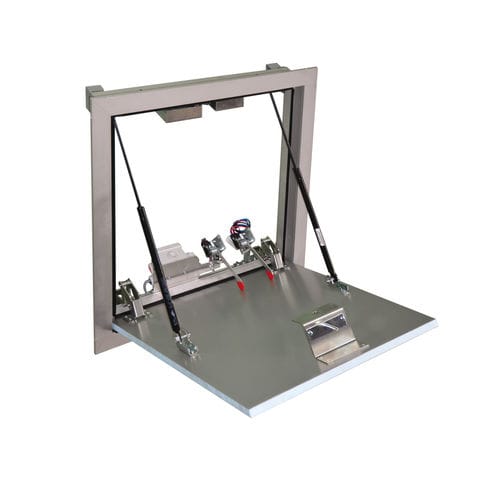

Aluminum smoke vent AIRONE

smoke and heat extractor

Understated and elegant aesthetic. Excellent thermal performances (thermal insulation as standard). Indoor grille GFAP 007 with same aesthetic as the grille of smoke exhaust damper. Ideal as smoke air inlets for outdoor wall installation. Choice of RAL colour. No visible hinge. Extra slim : only 40 mm aluminium frame profile. Useful : reset handle with 1 hand. Standard range : Width L : 475 mm => 1350 mm (5 mm steps). Hauteur H : 475 mm => 1350 mm (5 mm steps). Opening : “opening to the outside”, thanks to embodied energy (2 hydropneumatic springs) following an electrical command. Trigger : power emission or power cut-off, 24 or 48 VDC. Reset : manual (handle). Frame : aluminium profiles for a perfect installation into any types of window frames, particularly wall-mointed frames. Panel : insulated aluminium sheet metal (sandwich sheet metal/polystyrene/sheet metal). Airtight seal integrated into the profile. RAL paint finish : available as option (standard : anodised aluminium). Open and closed position contacts : available as option (possibility of double contacts). Available accessories : Mounting frame (recommended to ease the installation on concrete wall). Aesthetic indoor grille GFAP 007. ADVANTAGES • Refined and elegant aesthetics. • Thermal insulation as standard. • Aesthetic GFAP 007 indoor grille - Identical to that used on the smoke exhaust damper. • Ideal for VB air inlets on outside walls. • Choice of RAL colour • The standard range extends to: - Width: 475 ≤ L ≤ 1350 mm with a step of 5 mm - Height: 475 ≤ H ≤ 1350 mm with a step of 5 mm
