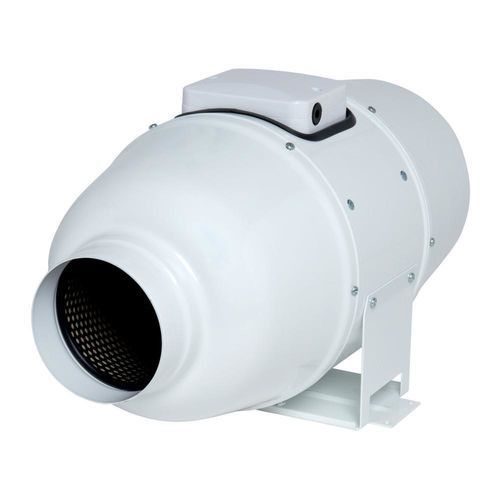

Axial fan IN LINE XSilent

extractorductresidential

Short description
IN LINE XSilent is a very quiet, high-performance duct fan with a steel casing and 50 mm internal acoustic insulation.

Applications
The IN LINE XSilent duct fan ventilates spacious rooms or environments while operating at a low noise level: villa, hotel, library, meeting room, cinema, lecture hall, etc. XSilent can operate in either supply or exhaust directions on circular ducting and can be installed at any point in the system. It offers up to 2 ventilation speeds if connected to an inverter and can operate with a voltage controller.

Functioning principles

• Can ventilate spacious rooms in residential or commercial settings.
• Can supply or extract air with 1 or 2 ventilation speeds controlled by an inverter or voltage controller.

The + products

• Very quiet due to 50 mm internal insulation: as low as 23 dB(A).
• Optimised aeraulic performance.
• Steel casing.

Main features

• Material:
  • Painted steel outer casing
  • ABS inner casing and impeller
• Thermal and acoustic insulation: 50 mm of rock wool
• 7 models: from Ø 100 mm to Ø 315 mm for maximum airflow from 240 to 1950 m³/h
• Single-phase high-performance 2-speed motor mounted on ball bearings
• Built-in thermal protection

Product implementation

• Connected to upstream and downstream ducts
• Can be installed in any position
• Attachment plate for installation on wall
• Can be mounted in series for higher pressure or in parallel for higher airflow
• Fresh air brought into room via air inlet grille or door undercut
• Supports ambient temperature between 1°C and 45°C
• Maximum exhaust air temperature: 60°C

References (table)
Reference | Service life (h) | Number of speeds | Insulation material | Motor Type
11022350 - IN LINE XSilent 100 | 40000 | 2 | (blank) | AC
11022351 - IN LINE XSilent 125 | 40000 | 2 | (blank) | AC
11022352 - IN LINE XSilent 150 | 40000 | 2 | (blank) | AC
11022353 - IN LINE XSilent 160 | 40000 | 2 | (blank) | AC
11022354 - IN LINE XSilent 200 | 40000 | 2 | (blank) | AC
11022355 - IN LINE XSilent 250 | 40000 | 2 | (blank) | AC
11022356 - IN LINE XSilent 315 | 40000 | 2 | (blank) | AC

Dimensions (table)
Reference | A (mm) | B (mm) | C (mm) | D (mm) | H (mm) | L (mm) | Ø (mm) | Weight (kg)
11022350 - IN LINE XSilent 100 | 215 | 505 | 237 | 100 | 237 | 505 | 100 | 4,6
11022351 - IN LINE XSilent 125 | 215 | 474 | 237 | 125 | 237 | 474 | 125 | 4,6
11022352 - IN LINE XSilent 150 | 247 | 580 | 260 | 150 | 260 | 580 | 150 | 6,1
11022353 - IN LINE XSilent 160 | 247 | 580 | 260 | 160 | 260 | 580 | 160 | 6,1
11022354 - IN LINE XSilent 200 | 293 | 550 | 295 | 200 | 295 | 550 | 200 | 8
11022355 - IN LINE XSilent 250 | 358 | 658 | 360 | 250 | 360 | 658 | 250 | 15
11022356 - IN LINE XSilent 315 | 432 | 780 | 434 | 315 | 434 | 780 | 315 | 25

Aeraulic data (table)
Reference | Airflow at max. speed (m³/h) | Airflow at min. speed (m³/h)
11022350 - IN LINE XSilent 100 | 240 | 100
11022351 - IN LINE XSilent 125 | 340 | 155
11022352 - IN LINE XSilent 150 | 555 | 405
11022353 - IN LINE XSilent 160 | 555 | 405
11022354 - IN LINE XSilent 200 | 1020 | 731
11022355 - IN LINE XSilent 250 | 1330 | 1050
11022356 - IN LINE XSilent 315 | 1950 | 1530

Acoustic data (table)
Reference | Sound pressure at 3 m at max. speed (dB(A)) | Sound pressure at 3 m at min. speed (dB(A))
11022350 - IN LINE XSilent 100 | 27 | 16
11022351 - IN LINE XSilent 125 | 25 | 16
11022352 - IN LINE XSilent 150 | 33 | 26
11022353 - IN LINE XSilent 160 | 33 | 26
11022354 - IN LINE XSilent 200 | 36 | 30
11022355 - IN LINE XSilent 250 | 38 | 34
11022356 - IN LINE XSilent 315 | 40 | 36

Electrical data (table)
Reference | Voltage (V) | Frequency (Hz) | Max. power (W) | Protection rating | Max. current (A) | Protection current (A)
11022350 - IN LINE XSilent 100 | 220/240 | 50/60 | 23 | IPX4 | 0,2 | 2
11022351 - IN LINE XSilent 125 | 220/240 | 50/60 | 23 | IPX4 | 0,2 | 2
11022352 - IN LINE XSilent 150 | 220/240 | 50/60 | 52 | (blank) | 0,3 | 2
11022353 - IN LINE XSilent 160 | 220/240 | 50/60 | 52 | (blank) | 0,3 | 2
11022354 - IN LINE XSilent 200 | 220/240 | 50/60 | 110 | IPX4 | 0,6 | 2
11022355 - IN LINE XSilent 250 | 220/240 | 50/60 | 178 | (blank) | 1 | 2
11022356 - IN LINE XSilent 315 | 220/240 | 50/60 | 313 | (blank) | 2 | 2

Regulatory data
ErP - Ventilation: Excluded from eco-design regulation 327/2011 (because P < 125 W) and excluded from eco-design regulation 1253/2014 because of the shell.

Electrical insulation class (table)
Electrical insulation class
Class 2

Characteristics / Technical specifications

• Product name: IN LINE XSilent
• Brand: Aldes
• Material: painted steel outer casing; ABS inner casing and impeller
• Acoustic insulation: 50 mm rock wool (internal)
• Available models / duct Ø: 100, 125, 150, 160, 200, 250, 315 mm
• Airflow range (max): 240 to 1950 m³/h depending on model
• Airflow at min. speed: 100 to 1530 m³/h depending on model
• Sound pressure at 3 m: from 25 to 40 dB(A) at max. speed (model dependent), down to 16 dB(A) at min. speed for smallest sizes
• Motor: single-phase high-performance 2-speed motor mounted on ball bearings
• Voltage / Frequency: 220/240 V, 50/60 Hz
• Service life: 40,000 h
• Number of speeds: 2 (can offer up to 2 speeds if connected to inverter; can operate with voltage controller)
• Built-in thermal protection
• Protection rating: IPX4 for some models (see electrical data)
• Electrical insulation class: Class 2
• Operating ambient temperature: 1°C to 45°C
• Maximum exhaust air temperature: 60°C
• Installation: can be installed at any point in circular ducting; can be mounted in series (higher pressure) or parallel (higher airflow); attachment plate for wall installation
