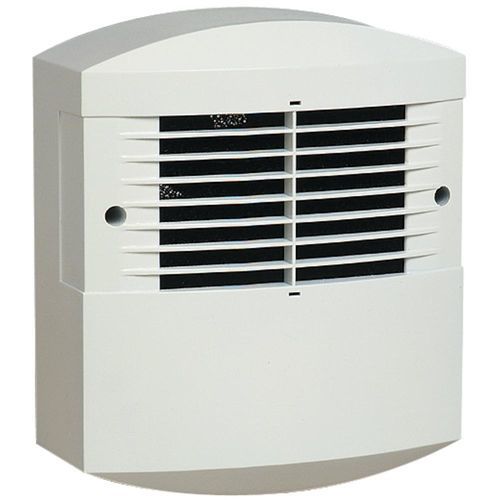

Extractor fan MONO

wall-mountdomesticbathroom

Product overview
MONO is a continuous extractor designed to renew the air in a single room 24/7. Suitable for kitchens, bathrooms, WCs and utility rooms, it supports ducted outlet over long runs and provides three selectable airflow rates with a manual boost option when connected to a CMEV inverter.

Functioning principles
MONO provides continuous ventilation for one room. Its aeraulic design enables long duct outlet runs while maintaining selectable exhaust flow at 15, 30 or 45 m3/h. Manual boost is available via connection to a CMEV inverter.

Product advantages

• Three airflow settings plus manual boost
• Designed for low acoustic impact
• Suitable for long ducted outlet runs
• 24-hour ventilation for a single room
• Capability for peak airflow when required
• Low electrical consumption

Main features

• Plastic housing
• Ø 100 mm outlet
• EC low-consumption motor on ball bearings with thermal protection
• Patented electronic airflow control system
• Silent blocks for acoustic comfort
• Filter located behind the grille to protect the motor from clogging
• Removable terminal block for electrical connection

Product implementation

• Wall mounting with 4 screws
• Can be installed in any position directly in the ventilated room
• Airflow settings: 15, 30 or 45 m3/h, adjusted by calibrating the grille (shutters included)
• Suitable for ducted outlet: up to 20 m depending on selected airflow
• Manual boost possible when connected to a CMEV inverter
• Fresh air supplied to living spaces via self-balanced air inlets

Regulatory data
Complies with Ecodesign Regulation 1253/2014 and is excluded from energy labelling Regulation 1254/2014 because maximum power is below 30 W.

Technical specifications

• Model name: MONO
• Application: continuous extractor for single rooms (kitchen, bathroom, WC, utility room)
• Airflow settings: 15 m3/h, 30 m3/h, 45 m3/h
• Manual boost: via CMEV inverter
• Outlet diameter: Ø 100 mm
• Suitable ducted outlet length: up to 20 m depending on airflow
• Material: plastic
• Motor: EC low-consumption motor on ball bearings with thermal protection
• Airflow control: patented electronic airflow control system
• Acoustic: silent blocks for high acoustic comfort
• Protection: filter installed behind the grille to protect the motor against clogging
• Electrical: removable terminal block
• Mounting: wall attachment with 4 screws; can be installed in any position in the ventilated room
• Fresh air supply: via self-balanced air inlets
• Compliance: meets ErP ventilation requirements (Regulation 1253/2014); excluded from energy labelling Reg.1254/2014 due to max power <30 W
