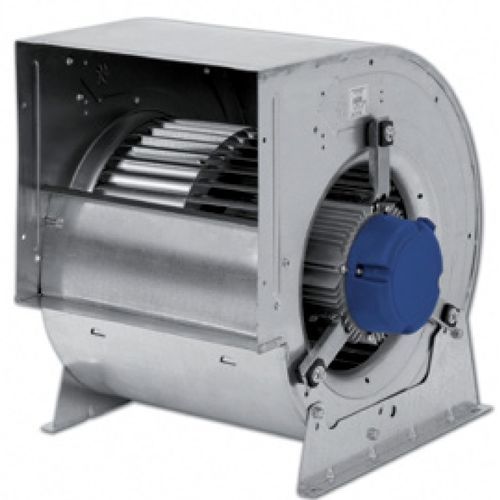

Centrifugal fan AMI
ductfor commercial kitchenindoor

centrifugal fan
centrifugal fan
Add to favorites
Compare this product

Go to the ALTEX, S.L. ALTA TECNOLOGIA EN EXTRACION website for more information

Characteristics

Type
centrifugal
Installation
duct
Sector
for commercial kitchen
Location
indoor
Material
galvanized steel
Color
gray
Air flow

Max.: 7,800 m³/h
(275,454.4 ft³/h)

Min.: 1,230 m³/h
(43,437 ft³/h)

Noise level

Max.: 75 dB

Min.: 53 dB

Weight

Max.: 24.5 kg
(54.01 lb)

Min.: 7 kg
(15.43 lb)

Height

333 mm, 400 mm, 450 mm, 526 mm, 632 mm
(13 in, 16 in, 18 in, 21 in, 25 in)

Width

315 mm, 380 mm, 422 mm, 493 mm, 553 mm
(12 in, 15 in, 17 in, 19 in, 22 in)

Length

Max.: 473 mm
(19 in)

Min.: 230 mm
(9 in)

Power

Max.: 750 W

Min.: 150 W

Description

Centrifugal double-inlet fans with BUILT-IN motor and impeler with forward-facing blades •Galvanized sheet steel casing. •Impeller with forward-facing blades made from galvanized sheet steel. Motor •Class F closed motors with incorporated thermal protector, ball bearings and IP-54 protection. •Single-phase 220-240V.-50Hz. and •three-phase 220-240/380-415V.-50Hz. •Max. air temperature to transport: -20ºC.+ 60ºC. Finish Anticorrosive galvanized sheet steel.
