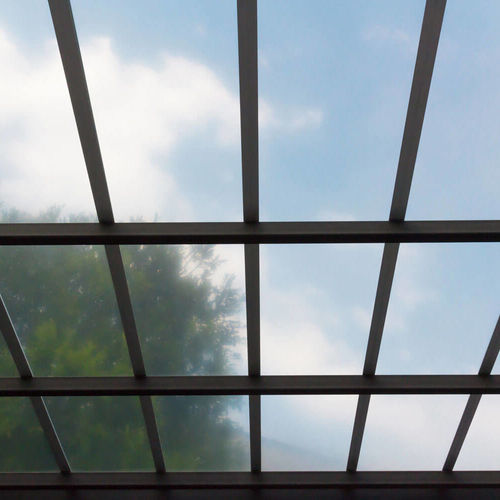

Cellular polycarbonate panel SMARTIA M4000

for partition wallfor windowfor roof

Product description
The SMARTIA M4000 polycarbonate system provides hollow (multiwall) and solid sheets plus the compatible aluminium framing for architectural glazing. Suited for atriums, skylights, sun roofs, canopies, interior partitions, windows, greenhouses, sliding roofs and noise barriers where light transmission, insulation and low weight are required.

Advantages

• Available as chambered (multiwall) or solid sheets in multiple thicknesses, colours and chamber configurations
• Lower weight and greater flexibility compared with traditional glass solutions
• High impact resistance (virtually unbreakable), thermal insulation, light transmission, acoustic attenuation and integrated UV protection
• Easy to clean and maintain, dust resists settling
• Supplied in standard and custom dimensions to suit building applications

Certificates
TÜV Austria OK Recycled (aluminium) and relevant CE/industry compliance where applicable.

Generic

• TYPES: hollow (multiwall) and solid
• MATERIAL: SABIC polycarbonate (PC) resin
• ATTRIBUTES: impact resistant; energy saving; sound reduction; watertightness; easy cleaning; easy handling; UV protection; no fire spreading

Technical characteristics

• THICKNESS: hollow 4–40 mm; solid 2–10 mm
• LAYERS: from 2 up to 7 layers
• STANDARD DIMENSIONS: 2100 x 6000 mm (hollow 4–20 mm), 1250 x 6000 mm (hollow 20–40 mm), 2050 x 6100 mm (solid)
• WEIGHT: approx. 0.8–3.2 kg/m2
• THERMAL TRANSMISSION (U-related): ~2.2 W/m2K (20 mm) to ~3.9 W/m2K (4 mm)
• UV PROTECTION: integrated/bonded UV layer
• LINEAR THERMAL EXPANSION: 0.065 mm/m°C
• FIRE RESISTANCE: Class 1
• AVAILABLE COLOURS: transparent, bronze, green, blue, white

Typologies

• 2 walls (thickness 4–6 mm)
• 3 walls (thickness 8, 10, 16, 20 mm)
• 5 walls (thickness 16–20 mm)
• 7 walls (thickness 25–32 mm)

Specifications / technical data

• Model / Series: SMARTIA M4000
• Types: hollow (chambered) and solid polycarbonate sheets
• Material: SABIC polycarbonate (PC) resin
• Thickness ranges: hollow 4–40 mm; solid 2–10 mm
• Layers: 2–7
• Standard dimensions: 2100 x 6000 mm (hollow 4–20 mm), 1250 x 6000 mm (hollow 20–40 mm), 2050 x 6100 mm (solid)
• Weight: approx. 0.8–3.2 kg/m2
• Thermal transfer: ~2.2 W/m2K (20 mm) to ~3.9 W/m2K (4 mm)
• UV protection: bonded to material
• Linear distortion: 0.065 mm/m°C
• Fire resistance: Class 1
• Colours: transparent, bronze, green, blue, white
• Typical applications: atriums, skylights, sun roofs, canopies, interior partitions, windows, greenhouses, sliding roofs, noise barriers
