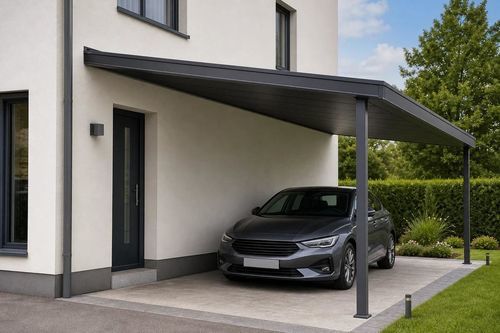

Domestic use carport

commercialfor boatfor parking lots

Product overview
Custom steel and aluminium carport pergola systems engineered for clear‑span parking bays to protect vehicles from sun, rain, hail, tree debris and snow. Supplied to dealers, importers and contractors with options for project customization, export packing and B2B delivery.

Key features

• Factory‑direct manufacture across a full pergola range: steel frames, aluminium frames and motorized louvered roofs.
• Clear‑span design: wide bays without central posts to allow unobstructed vehicle access and door opening.
• Vehicle protection against weather, hail, tree debris and bird fouling.
• EV‑ready configurations: mounting points and in‑frame cable routes for wallbox chargers.
• Roof load options and reinforced steel variants for heavy snow regions; verified structural performance for wide spans.

Customisation options

• Layouts: single, double, multi‑bay or wall‑attached clear‑span configurations; height set to the tallest vehicle on site.
• Material: steel for long clear spans and heavy loads; aluminium for coastal sites and low maintenance.
• Roof choices: solid weatherproof roof or adjustable louvered roof; integrated gutters and post drainage options.
• Side enclosure: fixed panels, louver walls or partial enclosures to create semi‑garage spaces.
• Finish: UV‑resistant powder coating; custom RAL colours available by order quantity.

Material selection (comparison)

• Steel pergola — Best for wide clear spans, double and multi‑bay systems and inland climates. Advantages: high strength for long spans, cost‑effective, ZAM coated steel with 80 μm powder coat proven in salt spray tests.
• Aluminium pergola — Best for coastal sites, projects requiring low maintenance and series with higher rated snow load options. Advantages: corrosion resistance and reduced upkeep; often preferred in humid or seafront environments.

Roof, drainage and snow load

• Roof types: solid weatherproof cover (primary for carports) or louvered roof for adjustable shade and ventilation.
• Drainage: integrated gutters with down‑through‑post drainage for neat water discharge.
• Snow load: aluminium series rated typically from 50 up to 120 kg/m² depending on model; steel structures can be reinforced for heavier snow requirements.

Applications

• Residential single‑bay carports for driveways.
• Double and linked multi‑bay frames for larger parking areas.
• EV charging carports with in‑frame wiring and wallbox mounting.
• Wall‑attached carports connected to buildings for sheltered access.
• Semi‑enclosed carports with side panels for added protection and storage.
• Tall‑clearance covers for RVs, boats, vans and larger commercial vehicles.

Factory capability & production facts

• Factory area: 46,000 m²; workshops: 38,000 m².
• Employees: 150; monthly capacity: ~4,500 sets.
• Technical staff: 15; R&D staff: 13; export markets served: 58 countries.

Testing, quality & process

• Production workflow: requirement → recommendation → drawing → production → QC → packing → shipment → after‑sales support.
• Inspections: IQC, IPQC, FQC, OQC covering materials, dimensions, coatings, louver movement, motors, LEDs and accessories.
• Tests: snow load, wind load, structural stability and waterproof/drainage verification.

Technical specifications

• Layouts: single, double, multi‑bay or wall‑attached clear‑span frames.
• Clearance: height configured to tallest vehicle on site (SUVs, vans, RVs accommodated).
• Materials: ZAM coated steel with 80 μm powder coat or corrosion‑resistant aluminium with UV‑stable coating.
• Roof: solid weatherproof roof or adjustable louvers; integrated gutter system draining through posts.
• Snow load (aluminium series): typical ratings from 50 to 120 kg/m² depending on series and model.
• EV options: wallbox mounting points on posts and in‑frame cable routing for single or multiple chargers.
• Finish: UV‑resistant powder coating; common colours anthracite, dark grey and white; custom RAL by order quantity.
• Packing: knock‑down export packing with labelled hardware kits and carton numbering for site assembly.
