Steel foundation screw HÉLIPIEUX
buildingdurableheight-adjustable

Steel foundation screw - HÉLIPIEUX - Ancrest - building / durable / height-adjustable
Steel foundation screw - HÉLIPIEUX - Ancrest - building / durable / height-adjustable
Steel foundation screw - HÉLIPIEUX - Ancrest - building / durable / height-adjustable - image - 2
Steel foundation screw - HÉLIPIEUX - Ancrest - building / durable / height-adjustable - image - 3
Steel foundation screw - HÉLIPIEUX - Ancrest - building / durable / height-adjustable - image - 4
Add to favorites
Compare this product
Go to the Ancrest website for more information

Characteristics

Material
steel
Application domain
building
Other characteristics
durable, height-adjustable

Description

What is HELIPIEUX?

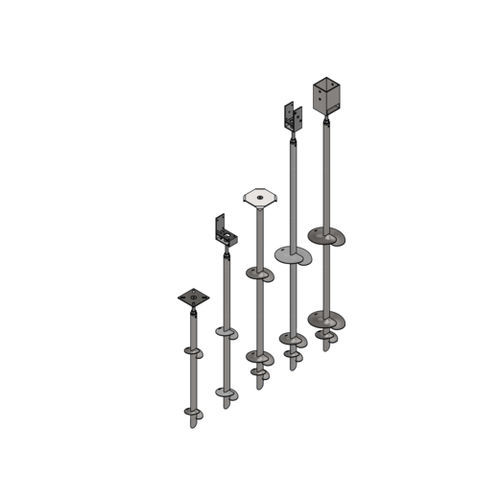

  • A new range of screw piles using helicoidal plate technology developed by ANCR'EST based on a 33.7 mm diameter shaft and 2 to 3 plates depending on the model.
  • Designed for concrete-free foundations of outdoor structures.
  • Unit load capacity higher than typical market offers and multiple lengths to suit site geology.
  • Helicoidal plates ease installation while ensuring maximum bearing capacity.
  • Wide range of base plates and the possibility of custom designs.


An innovative anchoring solution
  • Provides higher load capacities than standard market options for targeted applications.
  • Variants of ANCR'EST screw pile ranges using helicoidal plate technology deliver guaranteed high capacities.
  • Adapted to a wider range of soils with increased bearing capacity.
  • Particularly suitable for soils with large shrink-swell variations.
  • Extensive accessory range and engineering office producing bespoke base plates on request.
  • Comprehensive ANCR'EST screw pile offering from 500 kg ELU to several tens of tonnes in custom designs.


Higher load capacity
  • The range is available in 5 models with 5 ELU capacities: 500, 750, 1000, 1500 and 2000 kg.
  • Manufactured in S355 structural steel.
  • Pile tube: 33.7 mm diameter, 3.25 mm thickness providing mechanical strength above requirements.
  • Tube tensile/compression resistance: 88 kN.
  • Tube shear resistance: 25 kN.
  • Plate diameters: from 100 to 200 mm depending on required load uptake and soil bearing capacity.
  • Technical approvals currently being validated by an external control body.


More versatile helicoidal plates
  • Plates from 100 to 200 mm increase load capacity in less bearing soils and reduce the number of anchors required.
  • The helicoidal plate shape preserves soil cohesion and provides improved immediate holding.
  • Rounded plate cutting edge and a large pitch facilitate penetration in coarse-grained soils.
  • Two plates ensure vertical bearing while the upper plate improves horizontal resistance; a penetration plate eases installation for the ELU1000, ELU1500 and ELU2000 models.


Always the right length
  • Four standard lengths: 750 to 1500 mm to adapt to soil geology and optimize load uptake.
  • Extensions from 250 to 1000 mm enable reaching deeper bearing horizons.
  • Adjustable head allows adapting installation in case of refusal by cutting the tube and quickly fixing the base plate support.


Base plates to fix everything
  • Wide range of base plates suitable for all uses.
  • Fixing system with M16 screws adjustable in height.
  • Concave/convex washer system to adjust orientation and level.
  • Engineering office producing custom base plates in small series on request.


Fast and easy installation
  • Installation tool consists of a 46 mm HEX socket held on the HELIPIEUX with a shaft and two cotter pins.
  • Usable with a driver requiring approximately 2,000 Nm torque.


Download
  • Download HELIPIEUX brochures (brochures available on the website).


Characteristics / technical specifications
  • Product name: HELIPIEUX
  • Brand: ANCR'EST
  • Material: S355 structural steel
  • Tube: Ø 33.7 mm, thickness 3.25 mm
  • Number of plates: 2 to 3 depending on model
  • Plate diameter: 100 to 200 mm
  • ELU capacities available: 500, 750, 1000, 1500, 2000 kg
  • Standard lengths: 750 to 1500 mm
  • Extensions available: 250 to 1000 mm
  • Tube tensile/compression resistance: 88 kN
  • Tube shear resistance: 25 kN
  • Installation tool: 46 mm HEX socket, recommended torque ≈ 2,000 Nm
