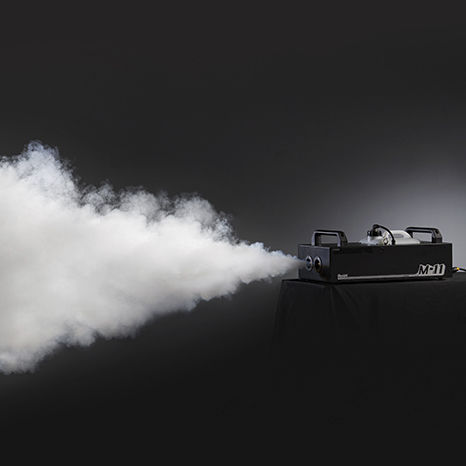

Antari continues to innovate with our first dual output designed M-11 fog machine.
The M-11 features a dual output nozzle and dual pump system that can be controlled either independently or simultaneously, allowing for a wider range of volume adjustment and output flexibility. Automatic sequential pump operation can produce endless volumes of fog in continuous mode making the M-11 the highest output fog machine ever created form Antari. The versatile control options include built-in electronic timer, DMX with RDM, stand alone operation, and optional wireless remote.
The M-11 is flexible enough to be used in small theaters and powerful enough to be used in the largest arenas.
Specification
Input voltage
US model : AC 100-120V, 50/60Hz 13.3A
EU model : AC 220-240V, 50/60Hz 6.67A
Rated power
1600W
Warm-up time
13 minutes (approx)
Fluid consumption
400 ml/min
Fluid tank capacity
10 Liters (2.64 gallon)
Compatible fluid
Antari FLG-10 Heavy Fog Fluid
Antari FLR-10 Light Fog Fluid
Ambient temp.range
0°C - 40°C (32°F - 104°F)
Control
Manual, Timer, DMX 512
Wireless (Optional)
Wireless DMX (Optional)
DMX channels
1 or 3 channels
Connection
Neutrik TRUE 1 Connector(Power)
XLR 3-pin and 5-pin (DMX)
Optional Accessories
W-DMX-PCBR Wireless DMX
WTR-20 Wireless
WTR-70 Wireless DMX and Remote
WTR-80 Wireless
WTR-90 Wireless DMX
Dimension
L 675 W 320 H 285 mm
(L 26.57 W 12.6 H 11.22 inch)
Weight
25 kg (55.1 lbs)
