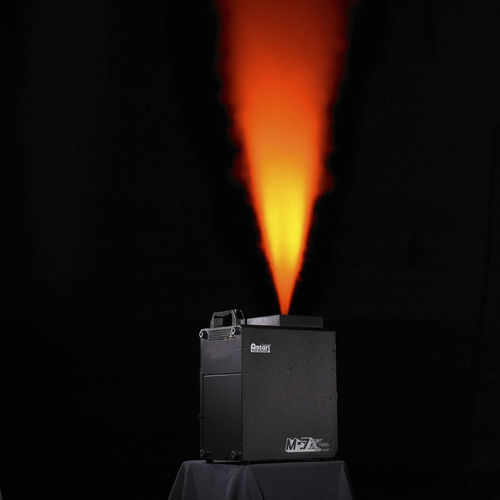

The M-7X is the upgraded version of M-7 RGBA LED fog machine. With the improved heater, it can deliver more powerful, higher volume, and much quicker fog bursts.
Feature
● Neutrik TRUE 1 Connector
● RGBA LEDs on board.
● Optional Wireless DMX available.
● New structure design for multiple angle rigging
● Auto-sensing frequency
● Fluid tank compartment for ease of transportation
● Huge output volume with high pigments LED colors
● Great fit for Stage purpose
● Generate fog at any orientation
Specification
Input voltage
US model : AC 100-120V, 50/60Hz 13A
EU model : AC 220-240V, 50/60Hz 6.5A
Rated power
1516 W
Light source
22 X 3W LED (5Red, 6Green, 6Blue, 5Amber)
Warm-up time
7 minutes (approx)
Fluid consumption
200 ml/min
Fluid tank capacity
2.4 Liters (0.63 gallon)
Compatible fluid
Antari FLC Super Light Fog Fluid
Ambient temp.range
0°C - 40°C (32°F - 104°F)
Output
10 metrers height
Control
Manual, Timer, DMX 512
Master / Slave, Wireless
Wireless DMX (Optional)
DMX channels
9 channel
Connection
Neutrik TRUE 1 Connector (Power)
XLR 3-pin and 5-pin (DMX)
Optional Accessories
WTR-90 Wireless DMX
Dimension
L346 W 193 H383 mm
(L 13.62 W 7.6 H 15 inch)
Weight
14 kg (30.8 lbs)
