Dimensions (LxWxH)* - 2005 x 796 x 136 mm
Peak Output** - 671 W
Aperature Area - 0.947 m2
Gross Area - 1.59 m2
Gross Dry Weight - 35 kg
Fluid Capacity - 310 ml
Flow Rate - 0.7 L/min (max 15L/min)
Max Operating Pressure - 800 kPa / 8 bar
ETC-10 Solar Collector Complete is comprised of:
1 x ETC-10-KIT (Manifold and standard frame)
1 x BOX-ET/HP-10/10 (Tubes and heat pipes)

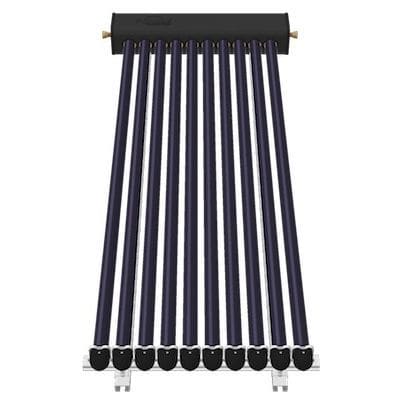

Apricus ETC-10 evacuated tube solar collectors are ideal for solar hot water systems. The Apricus ETC-10 collector is designed to be used in a wide variety of solar thermal (heat) applications in almost any climate. The evacuated tube and heat pipe technology provides very efficient and reliable solar thermal production in a simple to install design.
