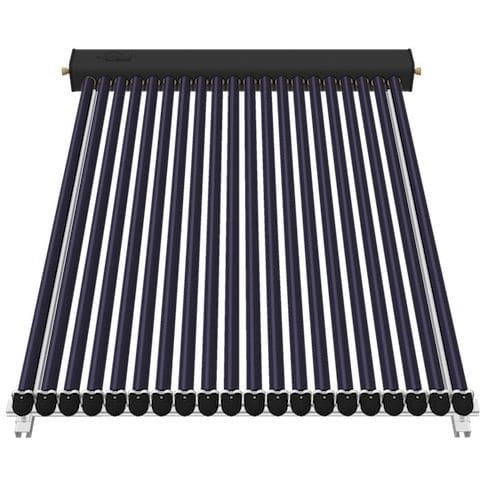

Evacuated tubular thermal solar collector ETC-20

for water heatingfor heatingstandard

Dimensions (LxWxH)* - 2005 x 1496 x 136 mm Aperature Area - 1.89 m2 Gross Area - 3 m2 Gross Dry Weight - 63.5 kg Flow Rate - 1.4 L/min (max 15L/min) Max Operating Pressure - 800 kPa / 8 bar ETC-20 Solar Collector Complete is comprised of: 1 x ETC-20-KIT (Manifold and standard frame) 2 x BOX-ET/HP-10/10 (Tubes and heat pipes) Apricus ETC-20 evacuated tube solar collectors are ideal for solar hot water systems. The Apricus ETC-20 collector is designed to be used in a wide variety of solar thermal (heat) applications in almost any climate. The evacuated tube and heat pipe technology provides very efficient and reliable solar thermal production in a simple to install design
