Twin glass evacuated tubes (passive solar tracking)
Freeze resistant heat pipes
Well insulated solar storage tank
Easy plug-in dry connect installation of heat pipes
3 year limited warranty on compact system
10 year limited warranty on evacuated tubes
Efficient performance at high differential temperatures
Evacuated Tubes: - Borosilicate 3.3 Glass
Absorber: - Cu-SS-AL/N
Heat Pipes: - High purity copper
Heat Transfer Fins: - Aluminum
Inner Tank: - Food grade 1.2mm SUS304
Outer Tank: - PVDF coating tank
Insulation: - High density polyurethane 50mm
Mounting Frame: - Galvanized steel 1.5mm, 304 SS Fasteners
Max. Pressure: - 6 bar
Electric heating element, PTRV, Mg anode & Check valve.

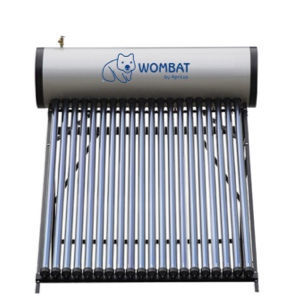

Apricus branded WOMBAT thermosiphon systems are the low cost type solar water heaters which supply solar hot water for domestic hot water applications. Apricus provides two choices based on your daily hot water demand, with available capacity of 150L, 200L, 240L 300L.
