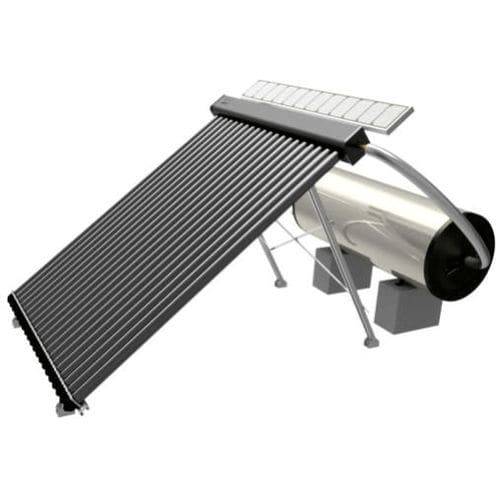

Solar storage water heater PV-ETC20-200

integratedhorizontalresidential

The Apricus PV-ETC20-200 solar system is designed to use free solar energy only. It can be applied for a wide variety of solar thermal (heat) applications in almost any climate. This system provides a complete package of 200L solar hot water heating solution, which technology provides very efficient and reliable solar hot water in a simple installation design. • Solar energy only hot water heating system • Enamel lined mains pressure storage tank with Mg Anode Freeze resistant heat pipes • High efficiency evacuated tube & heat pipe solar collector • 40W solar photovoltaic panel for electric supply • Cyclone rated, corrosion resistant aluminium mounting frame • Provided with circulation pump, temperature controller, all piping, fittings and safety valve • 5 year limited warranty on storage tank • 10-15 year limited warranty on parts Evacuated Tubes - Borosilicate 3.3 Glass Absorber - Cu-SS-AL/N Heat Pipes - High purity copper Heat Transfer Fins - Aluminium Rubber Components - HTV Silicone Rubber Mounting Frame - 6005-T5 Anodized Aluminium 316 SS Fasteners Manifold Casing - 3003 AL, PVDF coating Peak Power Output - 1342 W Dimensions (LxWxH) - 1496 x 2005 x136 mm Aperture Area - 1.89 m2 Gross Area - 2.21m2 Gross Dry Weight - 63.5 kg Fluid Capacity - 550 ml Max Operating Pressure - 800 kPa Stagnation Temperature - 228oC Certifications - Solarkeymark, AS/NZS 2712-2007, SRCC Tank - 2.2mm mild steel Lining - Enamel Casing - Powder Coated Zn Galv Steel Insulation - 58mm high density PU foam Anode - ∅18 x 1100mm Mg Anode Electrical Rating - IPX4 Safety Valve - 1MPa / 99oC PT valve Certification - CE, Watermark Pipe Material - 3/4” 304SS Flexible Pipe Fittings - Brass
