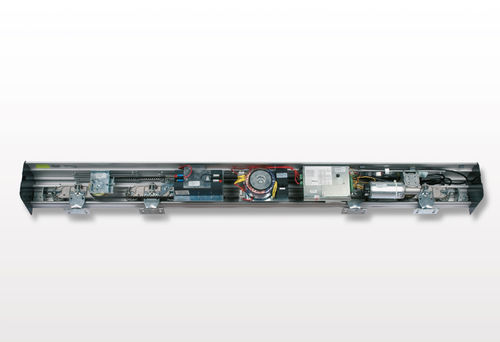

Sliding door automation WING series

slidingmodularwith rechargeable battery

Product overview
Automation system for sliding doors offering smooth, accurate and silent movement. The Wing/Slim Series (WING NK, WING NK H150, SLIM SNK) delivers modular automatic operators for commercial and industrial sliding doors, covering medium-light to heavy-duty applications with self-learning electronic control and emergency battery operation.

Design and operation
Compact extruded aluminium housings with an industrial design. Units are easy to install without masonry work and require minimal adjustments. Intelligent electronic control ensures faster commissioning, simplified maintenance and integrated safety management.

Drive and mechanical features
Toothed HPPD rubber drive belt reinforced with glass fibre and non-slip coating. Modular carriages with large-diameter reinforced-nylon wheels run on semicircular rails and include anti-derailment, anti-pitching and load-balancing systems. Reversible DC gear motor with electronic pulse-width control and 2-channel optical encoder for precise position and speed regulation. Self-learning functions (stroke length, wing weight, braking force and distance) and emergency battery operation. Aluminium profile covers available in natural, anodised silver and anodised black finishes.

Models

• WING NK – reversible single-motor operator for sliding doors; for high-traffic shops, supermarkets and offices; medium–heavy loads.
• WING NK H150 – new reversible single-motor operator; for high-traffic, heavy-load applications (up to 150 kg/wing on some cycles).
• SLIM SNK – reversible single-motor operator for medium-traffic doors; suited to medium–light loads.

Performance and capacities

• WING NK: heavy-duty (4 cycles/min.) — 2 wings: 100 kg each; 1 wing: 150 kg. Continuous (6 cycles/min.) — 2 wings: 80 kg each; 1 wing: 130 kg.
• WING NK H150: heavy-duty (4 cycles/min.) — 2 wings: 150 kg each; 1 wing: 150 kg. Continuous (6 cycles/min.) — 2 wings: 130 kg each; 1 wing: 150 kg.
• SLIM SNK: non-intensive (<3 cycles/min.) — 2 wings: 70 kg each; 1 wing: 100 kg. Heavy-duty (4 cycles/min.) — 2 wings: 50 kg each; 1 wing: 70 kg.

TECHNICAL DATA
Models: WING NK 1 / WING NK 2 | WING NK H150 1 / WING NK H150 2 | SLIM SNK 1 / SLIM SNK 2

GENERAL FEATURES
AUTOMATION POWER SUPPLY: - | Single-phase 230 Vac (+/- 10%) – 50 Hz | -
MOTOR POWER SUPPLY: - | 24 Vdc with high performance toroidal transformer | -
ACCESSORY POWER SUPPLY: 24 Vcc/Vca | 24 Vcc/Vca | 24 Vcc/Vca
OPERATING TEMPERATURE RANGE: -20°+60° C | -20°+60° C | -10°+60° C
INSTALLED POWER (MAX.): 300 W | 300 W | 130 W

DIMENSIONS (HxD) mm: 152x172 | 152x172 | 152x172
MIN./MAX. BEAM LENGTH mm: 1810-6010 | 1810-6010 | 1810-5410
MIN./MAX. PASSAGE SPAN mm: 850-2950 | 850-2950 | 850-2650

WING LOAD CAPACITY (kg)
MAX. LOAD: 100×1 100×2 | 150×1 150×2 | 100×1 70×2

SPEED (cm/s)
OPENING: 11-75 (1 wing) / 22-150 (2 wings) | 11-75 (1 wing) / 22-150 (2 wings) | 40-60 / 80-120
CLOSING: 11-75 (1 wing) / 22-150 (2 wings) | 11-75 (1 wing) / 22-150 (2 wings) | 11-50 / 22-100
APPROACHING SPEED: 6 | 6 | 6

Characteristics / technical specifications

• Series: Wing/Slim (WING NK, WING NK H150, SLIM SNK)
• Automation supply: single-phase 230 Vac (+/-10%) where applicable
• Motor supply: 24 Vdc (toroidal transformer for some variants)
• Accessory power: 24 Vcc/Vca
• Operating range: -20° to +60° C (model-dependent)
• Installed power (max): up to 300 W (model-dependent)
• Profile dimensions: 152 × 172 mm
• Beam length: 1810–6010 mm (model-dependent)
• Passage span: 850–2950 mm (model-dependent)
• Max wing load: up to 150 kg/wing for WING NK H150; SLIM SNK lower capacities
• Drive: toothed HPPD belt with glass fibre reinforcement; modular 3-wheel carriages on reinforced-nylon wheels
• Adaptive self-learning functions and emergency battery operation
• Safety inputs: photocell, emergency push-button, adaptive obstacle detection
