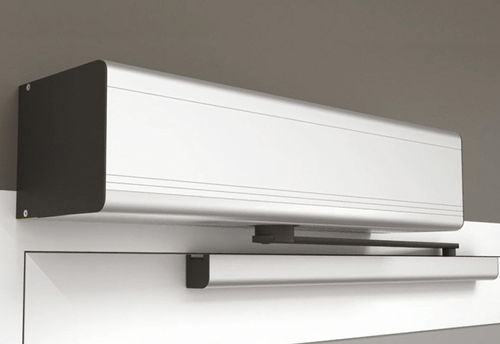

Swing door automation OVER series

for doorwith rechargeable batteryswing

Product
OVER / OVER HEAVY / OVER EVO (42605/001-002-003) – automation for indoor swing doors for continuous use; suitable for leaves up to the indicated maximum weights (see specifications).

Overview
Automation systems for indoor swing doors with encoder control for precise motor and door-status management. Variants: OVER, OVER HEAVY and OVER EVO. OVER EVO provides motorized opening and spring-assisted closing to guarantee safe closing during blackout. Optional brushless motor technology available for increased durability and reduced maintenance frequency.

Main functions and safety features

• Encoder-based control for accurate motor and door status management
• OBSTACLE DETECTION (via encoder): stops and/or reverses leaf movement when an obstacle is detected
• EMERGENCY opening mode: on power failure, system can set the door to OPEN and STOP or allow continued operation with optional backup battery
• PUSH & GO: recognizes manual push and enables opening
• OVER and OVER HEAVY: motorized opening and closing; OVER EVO: motorized opening and spring-assisted closing (safe closing during blackout)

Technical data (table)
POWER SUPPLY — OVER: (not specified) ; OVER HEAVY: 100/240 V - 50/60 Hz ; OVER EVO: (not specified)
MOTOR POWER SUPPLY — OVER: (not specified) ; OVER HEAVY: 24 V ; OVER EVO: (not specified)
ACCESSORY POWER SUPPLY — OVER: (not specified) ; OVER HEAVY: 12 V dc - 1A max. ; OVER EVO: (not specified)
THRUST FORCE — OVER: 20 Nm ; OVER HEAVY: 40 Nm ; OVER EVO: 23 Nm
MAX WEIGHT APPLICABLE TO THE LEAF — OVER: 200 kg ; OVER HEAVY: 300 kg ; OVER EVO: 220 kg
ABSORBED POWER — OVER: 40 W ; OVER HEAVY: 70 W ; OVER EVO: 70 W
MAX. LEAF WIDTH — OVER: L=1200 mm ; OVER HEAVY: L=1500 mm ; OVER EVO: L=1200 mm
USE FREQUENCY — OVER: (not specified) ; OVER HEAVY: S3 = 100% - continuous ; OVER EVO: (not specified)
OPENING ANGLE — OVER: (not specified) ; OVER HEAVY: 100° max. ; OVER EVO: (not specified)
OBSTACLE DETECTION — OVER: (not specified) ; OVER HEAVY: EYES adjustable ; OVER EVO: (not specified)
MAX. SPEED OPENING — OVER: (not specified) ; OVER HEAVY: 2-6 s ; OVER EVO: (not specified)
OPERATING TEMPERATURE — OVER: (not specified) ; OVER HEAVY: -15° C / +50° C ; OVER EVO: (not specified)
EMERGENCY BATTERY — OVER: (not specified) ; OVER HEAVY: OPTIONAL ; OVER EVO: (not specified)
PROTECTION DEGREE — OVER: (not specified) ; OVER HEAVY: IP20 ; OVER EVO: (not specified)
CERTIFIED — OVER: (not specified) ; OVER HEAVY: EN16005 ; OVER EVO: (not specified)

Additional information
The encoder enables precise obstacle detection and fine movement control. Optional emergency battery supports continued operation during power failure. PUSH & GO facilitates manual opening. OVER EVO's spring closing ensures safe closing even in blackout conditions.

Specifications / technical characteristics

• Series: OVER / OVER HEAVY / OVER EVO
• Model codes: 42605/001-002-003
• Max applicable leaf weight: OVER 200 kg; OVER HEAVY 300 kg; OVER EVO 220 kg
• Thrust force: OVER 20 Nm; OVER HEAVY 40 Nm; OVER EVO 23 Nm
• Absorbed power: 40 W (OVER), 70 W (OVER HEAVY / OVER EVO)
• Motor supply (OVER HEAVY): 24 V
• Accessory supply (OVER HEAVY): 12 V dc - 1A max.
• Max leaf width: OVER L=1200 mm; OVER HEAVY L=1500 mm; OVER EVO L=1200 mm
• Use frequency (OVER HEAVY): S3 = 100% - continuous
• Opening angle (OVER HEAVY): up to 100° max.
• Max opening time (OVER HEAVY): 2-6 s
• Operating temperature (OVER HEAVY): -15° C / +50° C
• Protection degree (OVER HEAVY): IP20
• Certification (OVER HEAVY): EN16005
• Features: encoder control, obstacle detection, emergency opening mode, optional emergency battery, PUSH & GO
• Variant details: OVER and OVER HEAVY – motorized opening and closing; OVER EVO – motorized opening and spring-assisted closing (safe closing during blackout)
• Brushless motor option for increased durability and reduced maintenance
