Swing gate automation ZT 71

gateswing

Overview

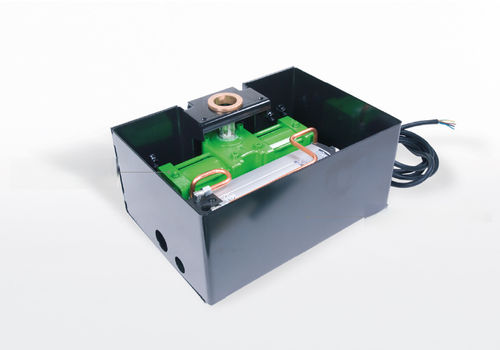

Compact underground hydraulic operator for swing gates, suitable for residential and condominium installations. Model ZT 71. Internal code: 41056/002-004.

Features

• Very low noise thanks to the hydraulic brake that slows the gate during opening and closing to prevent rebound and impacts.
• Underground installation preserves gate design and aesthetics.
• Anti-crushing safety via sensitive bypass valves calibrated at installation; hydraulic pressure is cut immediately on obstacle detection.
• Self-supporting maintenance box provides direct access to the jack by removing the stainless-steel cover without disassembling the gate wing.
• Manual release device for gate operation in case of power failure.

Control unit - Technical data

• Control unit types: B5, SF5
• Power supply: Single-phase 230 V - 50 Hz
• Max. wing width: B5 = 2.0 m; SF5 = 4.0 m
• Protection degree: IP54
• Absorbed power: 250 W
• Operating temperature: -20° to +70° C
• Pump capacity (Lt/min): 0.75 (B5), 0.75 (SF5)
• Max. operating pressure: 40 Bar
• Oil type: AprimOil
• Control unit weight with oil: 5 kg
• Control unit oil quantity: 1 Lt

Jack - Technical data

• Useful operating angle: max. 110°
• Max. wing weight: 800 kg
• Angular pump speed at 0.6 Lt/min: 6°/s
• Angular pump speed at 0.75 Lt/min: 7°/s
• Nominal torque: 410 Nm
• Weight with oil: 12 kg
• Oil quantity: 1 Lt
• Oil type: AprimOil

Technical specifications

• Model: ZT 71
• Internal code: 41056/002-004
• Application: Underground hydraulic operator for swing gates (residential and condominium)
• Control unit: B5, SF5
• Power supply: Single-phase 230 V - 50 Hz
• Max. wing width: B5 = 2.0 m; SF5 = 4.0 m
• Protection degree: IP54
• Absorbed power: 250 W
• Operating temperature range: -20° to +70° C
• Pump capacity (control unit): 0.75 Lt/min
• Max operating pressure: 40 Bar
• Oil type: AprimOil
• Control unit weight with oil: 5 kg; oil quantity: 1 Lt
• Useful operating angle (jack): 110° max.
• Max wing weight (jack): 800 kg
• Angular pump speeds (jack): 6°/s at 0.6 Lt/min; 7°/s at 0.75 Lt/min
• Nominal torque (jack): 410 Nm
• Jack weight with oil: 12 kg; oil quantity: 1 Lt
