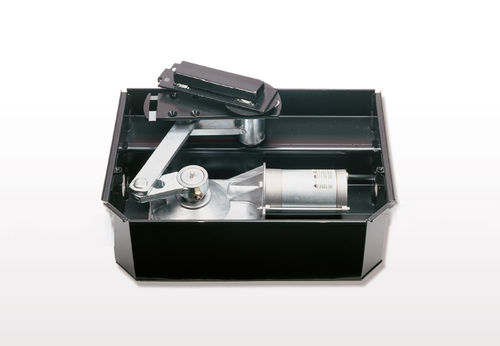

Swing gate automation EM 73Ngatechain driveswing
Add to favorites
Compare this product
Characteristics
- Applications
- swing gate, gate
- Options
- chain drive, swing, swing-arm
Description
Overview
Underground electromechanical operator designed for concealed installation on residential swing gates. Preserves gate aesthetics while delivering a 24 V drive solution. Product code: 41060/001.
Main advantages
Technical data
MAIN POWER SUPPLY: 230 V - 50 Hz
MOTOR POWER SUPPLY: 24 V dc
WING OPENING ANGLE: 110°, 140°, 180°
APPLICATION LIMITS (WIDTH / WEIGHT): 1.8 m / 400 kg; 3.5 m / 200 kg*
PROTECTION DEGREE: IP67
ABSORBED POWER: 200 W
ABSORBED CURRENT: 10 A
NOMINAL TORQUE: 280 Nm
OPERATING TEMPERATURE: -20° to +70° C
110° OPENING TIME: 20 s
SLOWDOWN: Optional
WEIGHT OPERATOR: 9 kg
(* Electric lock required for wings longer than 1.8 m.)
Technical specifications
Underground electromechanical operator designed for concealed installation on residential swing gates. Preserves gate aesthetics while delivering a 24 V drive solution. Product code: 41060/001.
Main advantages
- Concealed underground installation maintains original gate design.
- Low-voltage 24 V motor for enhanced electrical safety.
- Anti-crushing protection configurable via the T4 POWER electronic control unit; cataphoresis-coated sheet metal for corrosion resistance.
- Self-supporting container with anti-corrosion electro-plated lever mechanism. Standard opening angle 110°.
- Optional separate lever for 140° opening; optional chain pinion for openings up to 180°.
- Optional slowdown system enables fast transit during stroke with soft approach on opening and closing to eliminate impacts and rebounds.
- Available manual emergency release SB73; optional key-operated lock secures the emergency release pedal and can be operated from both sides of the gate.
Technical data
MAIN POWER SUPPLY: 230 V - 50 Hz
MOTOR POWER SUPPLY: 24 V dc
WING OPENING ANGLE: 110°, 140°, 180°
APPLICATION LIMITS (WIDTH / WEIGHT): 1.8 m / 400 kg; 3.5 m / 200 kg*
PROTECTION DEGREE: IP67
ABSORBED POWER: 200 W
ABSORBED CURRENT: 10 A
NOMINAL TORQUE: 280 Nm
OPERATING TEMPERATURE: -20° to +70° C
110° OPENING TIME: 20 s
SLOWDOWN: Optional
WEIGHT OPERATOR: 9 kg
(* Electric lock required for wings longer than 1.8 m.)
Technical specifications
- Main power supply: 230 V - 50 Hz
- Motor power supply: 24 V dc
- Nominal torque: 280 Nm
- Absorbed power: 200 W
- Absorbed current: 10 A
- Protection degree: IP67
- Operating temperature range: -20° to +70° C
- Standard opening angle: 110° (optional 140° with separate lever; up to 180° with chain pinion)
- 110° opening time: 20 s
- Weight of operator: 9 kg
- Application limits (width/weight): 1.8 m / 400 kg; 3.5 m / 200 kg (electric lock required for wings > 1.8 m)
- Optional features: slowdown system, separate lever system (140°), chain pinion system (180°), manual emergency release SB73, key-operated lock for emergency release pedal
