Sliding gate automation ONDA 624
with emergency exit functionwith rechargeable batterysliding

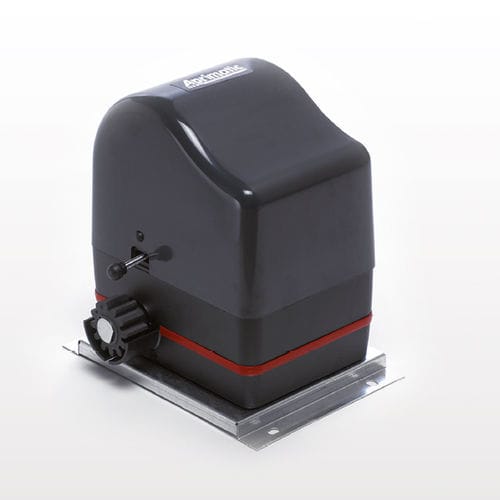

Sliding gate automation - ONDA 624 - Aprimatic - with emergency exit function / with rechargeable battery / sliding

Add to favorites

Compare this product

Characteristics

Applications: for sliding gates
Options: with emergency exit function, with rechargeable battery, sliding

Description

Product overview
Low-voltage gear motor for sliding gates suitable for residential wings up to 600 kg and condominium applications up to 400 kg. Encoder-based torque control ensures soft, progressive approach and accurate positioning during opening and closing.

Safety and operation
Compliant with EN12453 and EN12445 for obstacle detection and movement inversion. Optional internal battery pack maintains operation during mains failure. Emergency release lever with customised key allows manual disengagement in power outages. Certified for use under specified installation conditions.

Construction and design
Die-cast aluminium casing and aluminium-bodied worm-screw gear motor with integrated electronic control unit. Supplied with adjustable-height foundation plate for on-site alignment.

TECHNICAL DATA
MAIN POWER SUPPLY: 230 V - 50 Hz
MOTOR POWER SUPPLY: 24 V DC
MAX. WING WEIGHT: 600 kg
CYCLE NUMBER: 100 cycles/day
PROTECTION DEGREE: IP44
MAX. ABSORBED CURRENT: 4.2 A
MAX. ABSORBED POWER: 80 W
MAX. THRUST FORCE: 650 N
MAX. LINEAR SPEED: 10 m/min
OPERATING TEMPERATURE: -20° to +55° C
HEIGHT OF PINION FROM GROUND: 55 mm
OPERATOR WEIGHT: 7 kg

Technical specifications

Model code: 41102/001
Type: Low-voltage gear motor for sliding gates
Use: Residential (wings up to 600 kg); Condominium (wings up to 400 kg)
Safety standards: EN12453, EN12445
Drive technology: Worm-screw gear motor with encoder and electronic torque adjustment
Power supply (main): 230 V - 50 Hz
Motor power supply: 24 V DC
Max wing weight: 600 kg
Cycle number: 100 cycles/day
Protection degree: IP44
Max thrust force: 650 N
Max linear speed: 10 m/min
Operating temperature range: -20° to +55° C
Height of pinion from ground: 55 mm
Operator weight: 7 kg
Optional: Internal battery set for continuity during power failure
Construction: Die-cast aluminium casing; adjustable-height foundation plate; emergency release lever with customised key
