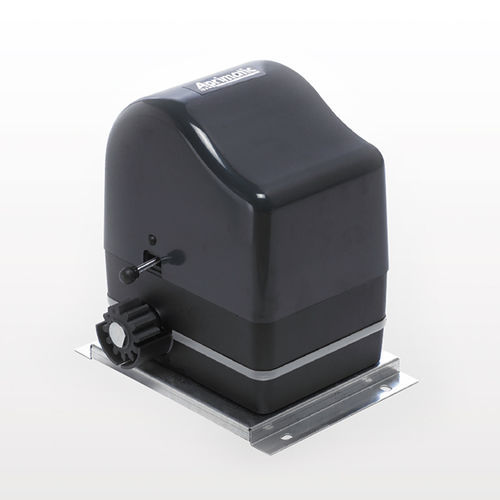

Sliding gate automation ONDA 623

gateslidingwith rechargeable battery

Overview
Low-voltage worm-gear motor operator for sliding gates. For residential gates up to 600 kg and for condominium applications up to 400 kg.

Safety and control
Complies with EN 12453 and EN 12445 regarding obstacle detection and reversal of movement. Electronic torque adjustment combined with encoder technology ensures gradual approach during opening and closing.

Power supply / Continuity
Operation continuity can be maintained in case of mains failure by an optional battery pack that can be installed inside the operator casing.

Construction and mechanics
Die-cast aluminium casing with worm screw gear motor and aluminium body. On-board electronic control unit. Adjustable-height foundation plate. Emergency release lever with customised key for manual release during power failures. (*) Product certified under ideal installation conditions.

Identification
Model code: 41623/001

Technical data
MAIN POWER SUPPLY : 230 V - 50 Hz
MAX. WING WEIGHT : 600 kg
CYCLE NUMBER : 100 cycles/day
PROTECTION DEGREE : IP44
MAX. ABSORBED POWER : 1,3 A
MAX. ABSORBED CURRENT : 250 W
MAX. THRUST FORCE : 650 N
MAX. LINEAR SPEED : 10 m/min
OPERATING TEMPERATURE : -20º +55º C
HEIGHT OF PINION FROM GROUND : 55 mm
WEIGHT OPERATOR : 7 Kg

Specifications / technical characteristics

• Main power supply: 230 V - 50 Hz
• Max. wing weight: 600 kg
• Cycle number: 100 cycles/day
• Protection degree: IP44
• Max. absorbed power: 1,3 A
• Max. absorbed current: 250 W
• Max. thrust force: 650 N
• Max. linear speed: 10 m/min
• Operating temperature: -20º +55º C
• Height of pinion from ground: 55 mm
• Weight operator: 7 Kg
