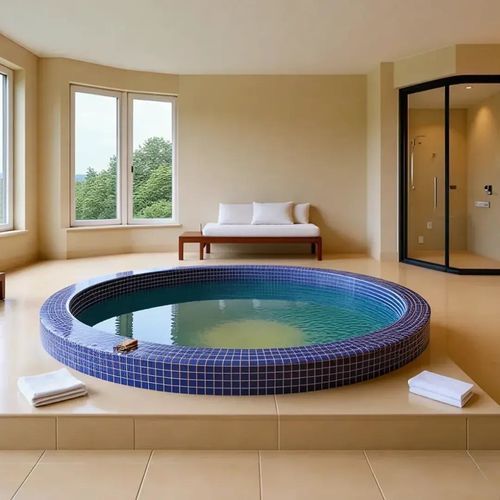

Above-ground hot tub TILED 190

circular5-personmosaic

Overview
The TILED 190 circular spa is a compact hydrotherapy unit engineered for professional wellness installations. Diameter Ø 190 cm, configured for 5 seated positions and a total of 26 massage points (16 water jets + 10 stainless steel air injectors). Designed for indoor and outdoor applications, it combines a metal frame, thermal insulation and an efficient filtration system for reliable operation and simplified maintenance. White LED lighting is standard; chromotherapy LED spotlight is available as an option. The LOW AMP electrical system reduces installation requirements and optimises energy use.

Short description
5 positions — Ø 190 cm — 26 massage points (16 water jets + 10 stainless steel air injectors). Indoor/outdoor use. Multiple shell finishes available.

General Specifications

• Spa dimensions (cm): Ø 190
• Number of seats (sitting / loungers): 5 (5 / -)
• Water volume (litres): 950
• Weight (empty - full): 225 kg / 1,175 kg
• Required power Low Amp (W) / (A) at 230 V: 3,600 W / 15.7 A
• Voltage: 230 V / 400 V

Features

• Number of water jets: 16
• Air injectors: 10 (stainless steel)
• Stainless steel jets/nozzles: Yes
• Overflow configuration (overflow spa): Yes
• Total massage points: 26
• White LED lighting (chromotherapy optional)

Options

• Shell finish type: Mosaic
• Available shell colours/finishes: Aster, Bahamas, Camel, Fusain, Gravier, Noisetier, Pierre, Zinnia
• Chromotherapy LED spotlight: Optional

Construction & Systems

• Metal frame structure
• Thermal insulation integrated
• Efficient filtration system for easy maintenance
• LOW AMP electrical system to lower installation requirements and optimise energy consumption

Technical specifications

• Model / Series: TILED 190
• Seats: 5 seated positions
• Diameter: Ø 190 cm
• Water capacity: 950 L
• Weight (empty / full): 225 kg / 1,175 kg
• Power (Low Amp) at 230 V: 3,600 W / 15.7 A
• Voltage options: 230 V / 400 V
• Massage points: 26 total (16 water jets + 10 air injectors)
• Stainless steel jets/nozzles: Yes
• Overflow: Yes
• Shell finish: Mosaic (multiple colour/finish options)
• Lighting: White LED (chromotherapy optional)
• Suitable for indoor and outdoor installations
