Square swimming pool-spa TILED 300

8-personstainless steelmosaic

Overview

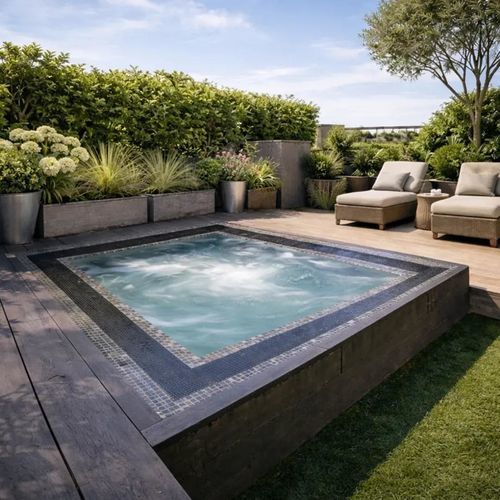

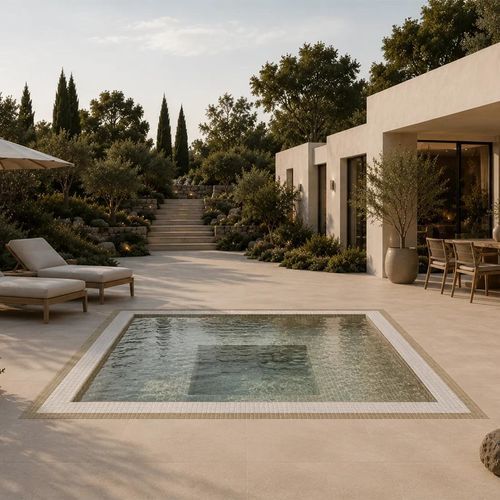

The TILED 300 built-in mosaic spa is a recessed hydrotherapy unit designed for commercial and high-end residential wellness projects. Measuring 300 x 300 cm, the square layout accommodates eight ergonomic seats for shared hydromassage sessions using a combination of water and stainless-steel air jets. Images may include digital renderings and can differ slightly from the final product.

Key features

• Capacity: 8 people (8 seating positions)
• Overall dimensions: 300 x 300 cm
• Massage points: 26 (16 water jets + 10 stainless steel air injectors)
• Water volume: 2,720 litres
• Weight (empty / full): 550 kg / 3,270 kg
• White LED lighting standard; chromotherapy LED optional

Construction & installation

• Metal frame with thermal insulation for improved durability
• Recessed built-in design suitable for indoor and outdoor installations
• Efficient built-in filtration system; options for underground filtration equipment

Equipment & controls

• Water jets: 16
• Air injectors: 10 (stainless steel)
• Stainless-steel jets/nozzles
• Piezoelectric push buttons: 2

Finishes & options

• Interior mosaic finishes (examples): Zinnia, Noisetier, Pierre, Bahamas
• Alternative shell color options: Bottega Acero, Bottega Antracita, Bottega Caliza, Breccia Imperiale
• Type of shell finish: Mosaic
• Chromotherapy LED spotlight: Optional

Applications
Suitable for wellness centers, hotels, residential projects and large-scale spa installations where a recessed mosaic spa for shared use is required.

Technical specifications

• Spa dimensions (cm): 300 x 300
• Number of places (sitting / lying down): 8 (8 / -)
• Spa water volume (litres): 2,720
• Spa weight (empty - full): 550 kg / 3,270 kg
• Low Amp required power (W) / (A) at 230 V: 9,450 W / 15.3 A
• Spa voltage: 400 V III
• Number of water jets: 16
• Air injectors: 10
• Stainless steel jets/nozzles: Yes
• Piezoelectric push buttons: 2
• Type of shell finish: Mosaic
• Chromotherapy LED spotlight: Optional
• Massage points: 26
