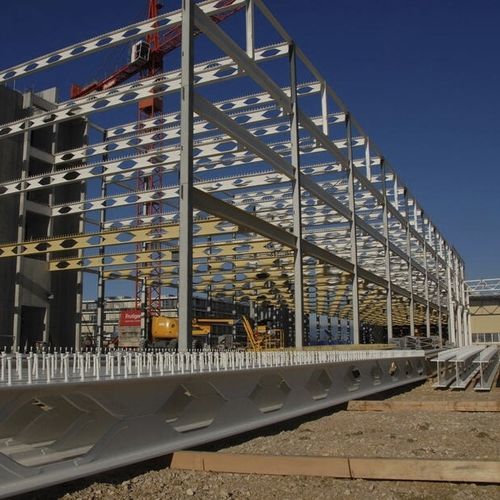

Steel beam ANGELINA
Ihollowfor flooring

steel beam
steel beam
steel beam
steel beam
steel beam
steel beam
steel beam
steel beam
Add to favorites
Compare this product


Characteristics

Material
steel
Cross section
I
Longitudinal section
hollow
Applications
for flooring, roof
Other characteristics
welded
Span

Min.: 10 m (32'09")

Max.: 50 m (164'00")

Description

Aesthetic, functional & sustainable Sleek, open, transparent and flexible, Angelina® beams offer a new architectural dimension within an environmentally friendly approach. With their sinusoidal web openings, they elegantly combine function with flexibility, integrating technical installations and optimising the weight/height or load/weight ratio. These lightweight, long-spanning, structural elements enable the design of vast column-free spaces and present an interesting alternative to trusses and open-web joist systems. Thanks to a reduced production time and substantial material savings, Angelina® also meets the economic requirements of your projects. Technical information Angelina® beams are fabricated based on the exclusive use of hot rolled sections. A single cut-out is made in the web by flame cutting and the two obtained T-sections are shifted and rewelded leading to an increase in height. The structural product thus obtained has an increased ratio of moment of inertia to weight. For a given section, height, length, and spacing of openings are variable resulting in extremely adjustable beam geometry and perfect suitability to project requirements. Objective: Optimisation of height/weight ratio Applications: roofing, gangways/footbridges, wide-span purlins Common steel grades: S235, S275, S355 Objective: Optimisation of load/weight ratio Applications: floors, car parks, offshore structures Common steel grades: S355, S460, HISTAR® 460 Base Profiles IPE300 – IPE750, HE240 – HE1000, HL920 – HL1100, HD260 – HD400, UB305 – UB1016, UC305 – UC356, W310 – W1100
