Smoke extractor fan VAD centrifugalcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- smoke extractor, centrifugal
- Sector
- commercial
- Location
- indoor
- Material
- galvanised steel, sheet metal
- Color
- gray
- Height
Min.: 534 mm
(21 in)Max.: 1,374 mm
(54 in)- Width
Min.: 268 mm
(11 in)Max.: 550 mm
(22 in)- Length
Min.: 505 mm
(20 in)Max.: 1,374 mm
(54 in)
Description

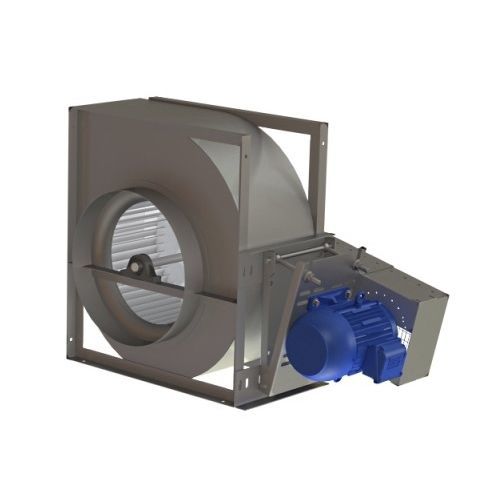

The VAD is a belt-driven centrifugal fan with forward-facing blades (numerous straight blades facing forwards) with a motor installed outside the airflow. Designed for medium flow environments with low and medium pressures, this product is particularly suitable for smoke extraction in car parks and commercial premises.
TEMPERATURE
EN12101-3 certified for operation:
400°C/2h
300°C/2h
200°C/2h
CONSTRUCTION
It is made of pre-galvanised sheet steel, the transmission is protected by a crankcase. The single-inlet turbines are statically and dynamically balanced. The bearings are self-aligning, sealed and greased for life up to size 18/9, with grease nipples and mounted on a cast iron support from size 20/10.
