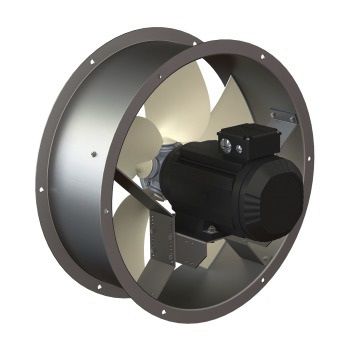

Helical fan AXUS RANGE – EX

commercialindoorgalvanised steel

Our range extends from 250mm diameter to 1800mm diameter, from a few hundred m3/h to 240000 m3/h, with 2, 4 and 6 pole motors, 1 or 2 speeds as well as the possibility of use in geographical areas with a specific electrical network, 60 Hz. Other engine speeds are available on request. APPLICATION The ATEX certified fans have been designed for use in areas classified as hazardous where flammable and combustible substances are present. Air extraction in explosive atmospheres: Groupe II Zones 1-2 Gas-Dust TEMPERATURE Standard operating temperatures are from -20°C to +40°C with a class F motor. For efficiency, our response, ATEX Zone 1-2G is centred on a solution with an antistatic polyamide impeller and Gas II B (T4) motors. Numerous other solutions covered by our certification will be offered to you by our sales team on request (materials, dust, flammability temperature etc.) CONSTRUCTION Our fans, fully compliant with the ATEX Directive 2014/34/EU, are made in our factory from pre-galvanised sheet steel as standard. In order to meet your particular needs, we manufacture on request: Stainless steel 304L or 316L Hot galvanised steel Surface treatment with epoxy paint
