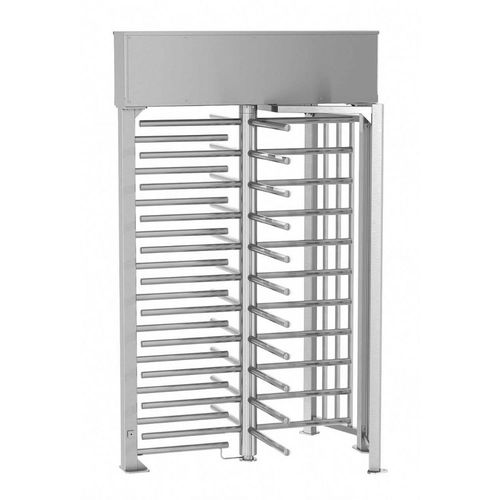

Full-height turnstile ART63

for access controlstainless steelglass

POWER: 220 VAC 50/60 Hz Optional 110 VAC POWER CONSUMPTION: Maximum 25 Watt Minimum 10 Watt INDICATOR: LED indicator glass is designed to be perfectly flush with the chassis surface, it expresses the passage control of the system. Led indicator is offered as standard in all of the ARITAN LED indicator turnstile models, also it can be manufactured in different styles on demand. CONTROL: There exists a dry contact output in the direction passed, the dry contact can easily be connected to 12 VDC, 24 VDC or various access control units and other peripheral units in order to trigger passage. Also direction choice can easily be set by the dip switches on the card by the users, the turnstile allows passage in both directions in case of a power cut, this is a legal obligation, a counter-system cannot be offered without a written and officially signed demand from the customer. There is also an extra contact input for emergencies such as: fire, earthquake etc. All of the solenoid and LED indicators are long lasting semiconducting, also there is a buzzer on the control cart which indicates when passage authorization is received, the buzzer can be deactivated by the dip switch on the card on demand. CHASSIS: All of the ARITAN height type turnstiles can be produced in 3 special different versions on demand, ( V.S -1 completely DKP+ Electrostatic painted ) ( V.S – 2 completely ASI 304 quality stainless steel ) ( V.S – 3 only the rotor is stainless steel, rest is electrostatic painted.)
