Sound insulation UL-EPDM

EPDMrollwall

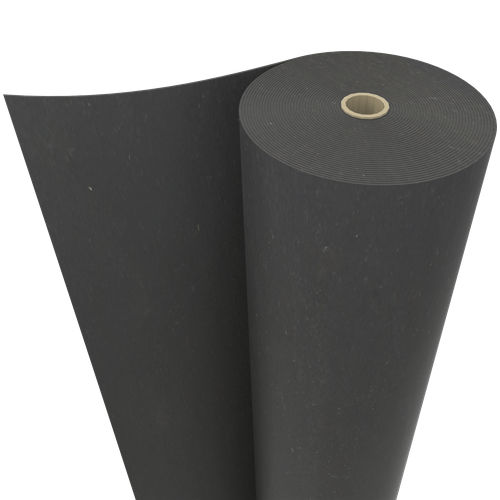

The dBA UL-EPDM is an EPDM based heavy mass sound barrier. It can be used independently or incorporated into a multi-layered construction scheme. Due to its thinness, it is easily integrated or fitted in building layers (floor, ceiling or wall). Therefor, this product offers a significant weight increase with little space occupation, while improving the structure's overall sound insulation. - dBA UL-EPDM 3.5 - dBA UL-EPDM 3.5 Self-adhesive - dBA UL-EPDM 5 - dBA UL-EPDM 5 Self-adhesive - dBA UL-EPDM 10 - dBA UL-EPDM 10 Self-adhesive dBA UL-EPDM - EPDM - UL EPDM 3.5 - Mass [kg/m2] = 3,5 (± 5%) - Young Modulus [MPa] > 7,5 | ISO 527 - Resistance to Traction [N/mm2] > 1 - Elongation at Break [ > 100 | ISO 37 - Fire Rate: EN 13501-1 - UL EPDM 5 - Mass [kg/m2] = 5 (± 5%) - Young Modulus [MPa] > 8,4 | ISO 527 - Resistance to Traction [N/mm2] > 1 - Elongation at Break [ > 100 | ISO 37 - Fire Rate: Euroclass B-s1d0* | EN 13501-1 * Upon Request. - UL EPDM 10 - Mass [kg/m2] = 10 (± 5%) - Young Modulus [MPa] > 6,6 | ISO 527 - Resistance to Traction [N/mm2] > 1 - Elongation at Break [ > 100 | ISO 37 - Fire Rate: EN 13501-1 ACOUSTIC PERFORMANCE: Impact Sound Reduction * - UL EPDM 3.5 | = 16 dB - UL EPDM 5 | = 17 dB - UL EPDM 10 | = 21 dB * ∆Lw measured with UL-EPDM applied under a floating Parquet floor and over a 150mm think concrete slab.
