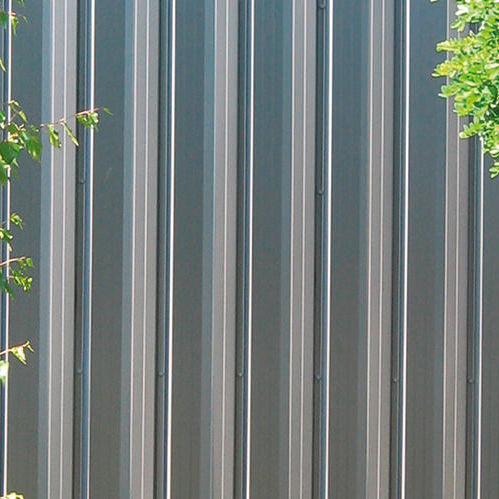

LPA900 consists of ribbed steel panels, externally fixed to the secondary framing with self-drilling screws with composite nylon heads, colored to match the sheeting.
Advantages
Economical, functional and durable construction
Aesthetically pleasing panel with discreet ribbed profile
Easy replacement of damaged panels
Simple and quick erection
High performance coatings
Large range of integrated accessories
All flashings and connecting parts
Technical Specifications
Steel quality: S350 GD in accordance with EN 10326
Yield strength: 350 N/mm²
Ultimate tensile strength: 420 N/mm²
Nominal thickness: 0.49 mm
Modular width: 900 mm (3 modules of 300 mm)
Depth of ribs: 29 mm
Accessories
Single or double personnel doors
Translucent panels
Wall louvers
Framed openings
Flashings and trims
Building System – Wall – LPA900
Three effective systems
Single-skin wall with or without Isobloc
Single-skin wall with inside sheeting
Arctic Wall
Building System – Wall – LPA900
All RAL colours can be delivered. For short delivery times, we provide some stock colours, which you can see on the right:
This system is the most economical
The insulation is made of soft faced glass fiber providing good acoustical comfort
It is available with Isobloc and increased insulation thickness to improve overall thermal performance and reduction of thermal bridges
