Aluminum roofing sheet

steelflatcorrugated

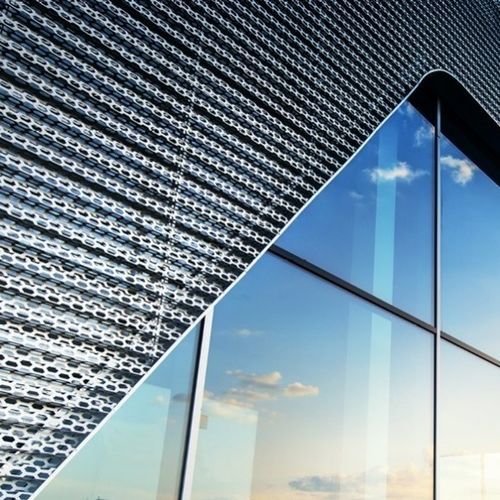

COVERINGS SYSTEM: Atena’s corrugated, undulated and flat sheet covering is an easy-to-install solution with visible fixings and a concealed structure in aluminium profiles. Along the vertical axis, the modules are separated by special T-profiles that allow the sheet to be easily fixed to the flat part, while the edge of the profile creates a slight demarcation line between the elements. Along the horizontal axis, the modules can be installed either overlapping or side by side with the separating profile. As with all of Atena’s architectural façade systems, the corrugated, undulated and flat sheet models include specific finishing elements that allow the correct covering of internal and external corners, columns, bases, top beams and floors. In accordance with the perforations, it is possible to create both ad hoc fillings and continuous solutions with perforated modules that, while screening, allow natural light to enter the building. The application of the special Dot-Art perforation to the flat sheets gives the façade a striking visual effect. STRUCTURE: Aluminium support omega profiles 12/10 30x30x30mm or other sizes according to the project. Spacers for height adjustment. Vertical spacer for sheet separation. Horizontal spacer for sheet overlap. Special finishing profiles | Visible fixings. FLAT MODULES: aluminium 20/10 : 1000x3000mm | 1000×4000 mm 1250x3000mm | 1250×4000 mm 1500x3000mm | 1500×4000 mm. Post-painted RAL/ NCS matt/glossy colours. Corten effect aluminium | Anodised aluminium. Laser cuts | Punchings | Moldings | Special Dot-Art perforations | High resolution digital printing. CORRUGATED MODULES: from 12/10 to 20/10 aluminium : 700x3000mm | 700x4000mm. Post-painted RAL/NCS matt/glossy colours. Corten effect aluminium | Anodised aluminium. Laser cuts | Punchings. UNDULATED MODULES: aluminium 8/10 | Steel 7/10 1000x3000mm | 1000×4000 mm 1250x3000mm | 1250×4000 mm 1500x3000mm | 1500×4000 mm. Post-painted RAL/NCS matt/glossy colours. Anodised aluminium. Wood effect, corten and aged metals on request. Laser cuts | Punchings. AIR PURIFICATION SYSTEM: - Aluminium support omega profiles 12/10 30x30x30mm or other sizes according to the project - Spacers for height adjustment - Vertical spacer for sheet separation - Horizontal spacer for sheet overlap - Special finishing profiles | Visible fixings - Flat Modules: aluminium 20/10 : 1000x3000mm | 1000×4000 mm 1250x3000mm | 1250×4000 mm 1500x3000mm | 1500×4000 mm - Post-painted RAL/ NCS matt/glossy colours - Corten effect aluminium | Anodised aluminium - Laser cuts | Punchings | Moldings | Special Dot-Art perforations | High resolution digital printing - Corrugated Modules: from 12/10 to 20/10 aluminium : 700x3000mm | 700x4000mm - Post-painted RAL/NCS matt/glossy colours - Corten effect aluminium | Anodised aluminium - Laser cuts | Punchings - Undulated Modules: aluminium 8/10 | Steel 7/10 1000x3000mm | 1000×4000 mm 1250x3000mm | 1250×4000 mm 1500x3000mm | 1500×4000 mm - Post-painted RAL/NCS matt/glossy colours - Anodised aluminium - Wood effect, corten and aged metals on request - Laser cuts | Punchings
