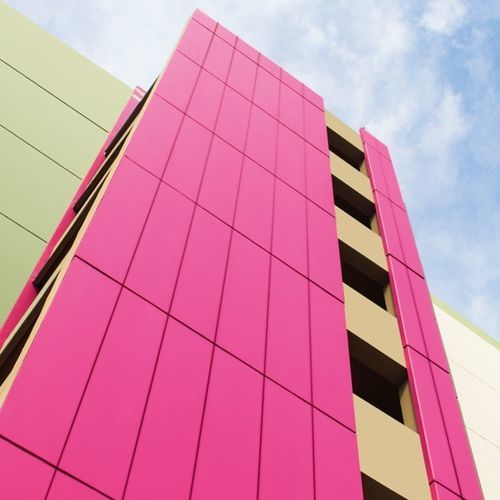

Aluminum ventilated facade LINE UP

colored

Atena Line-up is a cladding system for ventilated facades made up of pre-shaped aluminium modules properly conceived to be overlapped and direct fixed on the bearing profiles. Syde by Syde models are available in three different widths 390 | 490 | 590 mm and 2,5m of maximum length. Models with gap are available with the following dimensions 400 | 500 | 600 mm width and 2,5m maximum length. Both models must be installed with 10mm minimum gap on short sides to allow the necessary material thermal expansion. Beautifully detailed, the Atena LINE-UP coverings are properly conceived to realize ventilated facades with all finishing elements such as starting, top, lateral and corner profiles. A predefined set of elements and a great freedom of configuration: thanks to the possibility to cut the modules directly on site and to use laying patterns with horizontal, vertical and diagonal orientation. Mix colours, dimensions and laying arrangements to give the building one of the most appealing result, which can be enriched with custom-made digital printing, to create surprising visual effects on flat surfaces. Direct fixing modules, Concealed fastening and structure Material: aluminium 12/10 Side by side installation: width 400 | 500 | 600 mm 2,5m maximum lenght
