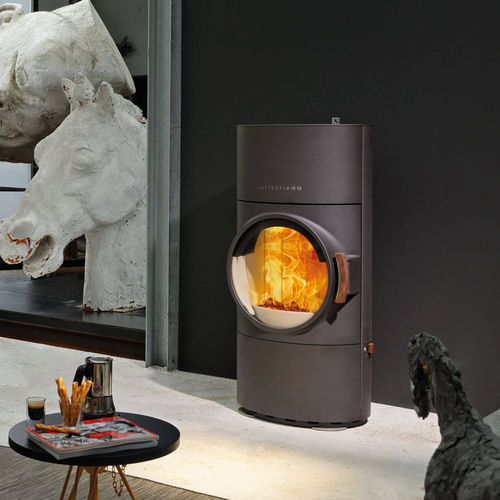

Wood heating stove CLOUXTRA
4 kW11 kWcontemporary

wood heating stove
wood heating stove
Add to favorites
Compare this product


Characteristics

Power source
wood
Nominal heat output
4 kW, 11 kW
Style
contemporary
Material
steel, ceramic, soapstone

Description

weights and dimensions h x w x d STM - 1296 x 630 x 450 mm h x w x d combustion chamber - 389 x 432 x 245 mm flue outlet diameter - ø 150 mm flue outlet diameter middle - 1144 mm w x d warming compartment / -plate - - h x w x d KMG - - h x w x d SPM - - weight STM / KMG / SPM - 273 / - / - kg heat output ominal heat efficiency according to EN 13240 - 8 kW Min. / Max. output - 4 / 11 kW min. / max. room heating capacity - 98 - 255 m³ features Xtra heatstoring technology - o Heat Memory System - - design 1 - o cast iron top plate - - warming compartment - - ceramic version - - steel version - o soap stone version - - soap stone top plate - - ash drawer - - ash box - o floor plate / fire tube - Z cladding - door - flat data for chimney sweep external air connection - o Total flue gas flow closed - 6,6 g/s Flue gas temperature closed - 357 °C Minimum feed pressure at nominal heat efficiency closed - 12 Pa at 0,8 times nominal heat efficiency - 10 Pa DIBt approved - o drawing dimensions (acc. to drawing) - a 1813 / b 1144 / c 598 / d 227
