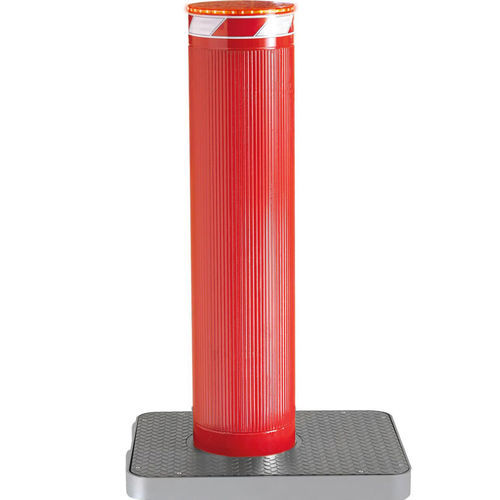

Security bollard RB M50_1200

access controlanti-terroristretractable

High-security antiterrorist bollards (height 1200mm) The RB M50 automatic bollards (or active bollards) are retractable anti-ram devices capable of stopping a 7,5T vehicle at a speed of 80km/h (or 3,5T at 112km/h) Technical specifications Crash test certified - PAS68:2013 V/7500(N3)/80/90 ASTM M50/P3 Rated in compliance with - IWA 14-1:2013 V/7200(N3C)/80/90 DOS K12 Impact resistance - 2.000.000 joules 7,5T at 80km/h 3,5T at 112km/h Obstacle diameter - 275 mm Foundation depth - 2000 mm Rising / lowering speed - 5 / 5 sec Enhanced speed available Emergency Fast opening (Rising time) - 1 sec Hours / Days cycles - 300 / 2000 • In case of power failure, the obstacle can be lowered by a manual operation directly on the hydraulic pump. Additional options allow the obstacle to be lowered from a remote location OR to be raised (manual pump) OR an uninterrupted operation (UPS) • The operation can be signaled by LEDS on the obstacle, a buzzer, traffic lights or a synchronization with a rising oarrier. • Finishing: the bollard is available in painted steel (with or without ribs) and in brush stainless steel. • The hydraulic pump is built in the pit of the bollard • The control unit is housed in a cabinet which could be up to 60m remote. It's could be also integrated in a ground retractable cabinet
