APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution

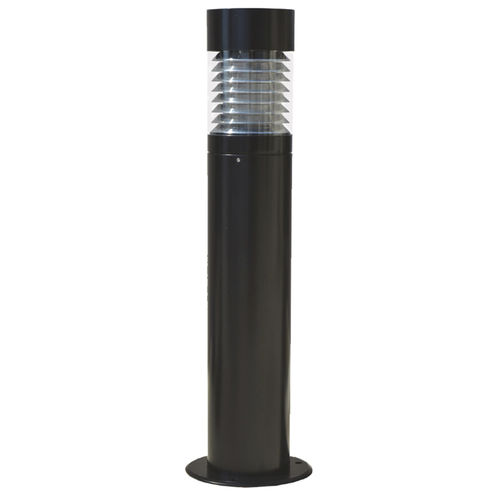

PRODUCT DESCRIPTION
Bollard made of aluminium die cast,
Louver Highest grade aluminium,
polished and anodised.
Body pole aluminium
Diffuser PMMA
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP66
Impact resistance IK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.
LAMPS
Module connected wattage 18W
Luminaire connected wattage 20W
Ambient température t® max = 55 °C
NW
Colour température 4000K
Colour rendering index Ra>80
Luminaire luminous flux 1692 Im
Luminaire luminous efficiency 94 Im / W
WW
Colour température 3000K
Colour rendering index Ra>80
Luminaire luminous flux 1566 Im
Luminaire luminous efficiency 87 Im / W
Standard colour température 4000K
Also available with 3000K on request.
