APPLICATION
LED high-performance urban lights with
Wide & Asymmetric Beam light distribution
PRODUCT DESCRIPTION

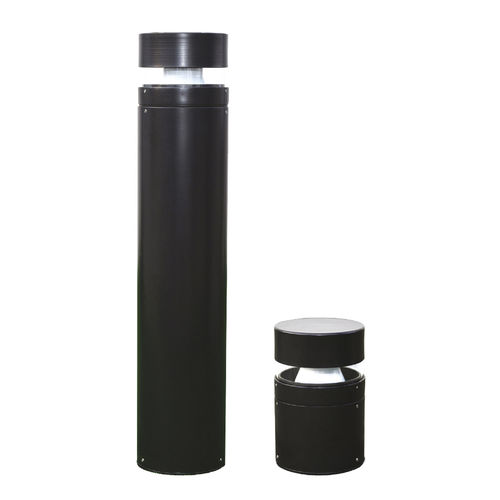

Bollard made of aluminium alloy& die cast.
Body pole steel with electrogalvanized
Diffuser plexiglass
Silicon rubber gasket
Mounting detail anchor system
All RAL Codes or
Special architectural paints
LED power supply unit
Input 100 –305V AC 50 / 60 Hz
Power factor > 90% full load
6kV surge protection
DALI controllable (optional)
0-10V / 1-10V controllable (optional)
Safety class II
Protection class IP66
Impact resistance IK08
Operation temperature -25°C / +55°C
EULUMDAT files available
Complies with European standards
EN 60598 and CE certificate.
- Conformity mark.
LAMPS
Module connected wattage 20W
Luminaire connected wattage 22W
Ambient température t® max = 55 °C
NW
Colour température 4000K
Colour rendering index Ra>80
Luminaire luminous flux 1800Im
Luminaire luminous efficiency 90 Im / W
WW
Colour température 3000K
Colour rendering index Ra>80
Luminaire luminous flux 1640 Im
Luminaire luminous efficiency 82 Im / W
Standard colour température 4000K
Also available with 3000K on request.
