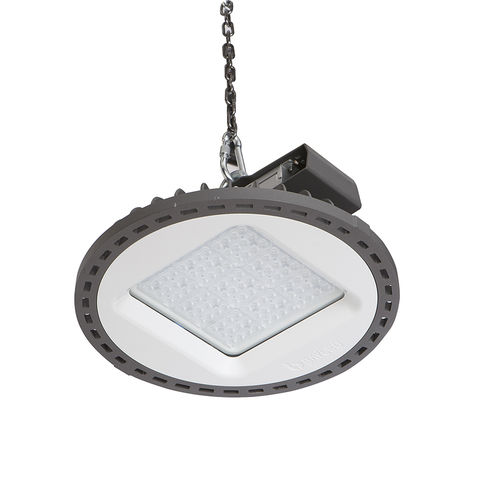

Hanging light fixture CIRCLE-M

LEDroundIP66

APPLICATION LED high-performance High-Bays with wide & narrow beam light distribution. PRODUCT DESCRIPTION High-Bays made of aluminium die cast, Aluminium and stainless steel. Clear 5mm safety glass Silicon rubber gasket Mounting bracket made of steel with Electrostatic powder coating. Lens angle 15°-40°- 60°- 90° Colour standard MT-X6-23 Optional RAL codes. LED power supply unit Input 100 – 305V AC 50 / 60 Hz Power factor > 90% full load 6kV surge protection DALI controllable (optional) 0-10V / 1-10V controllable (optional) Safety class I Protection class IP66 Impact strenght IK09 Operation temperature -25°C / +55°C Wind catching area: 0,08 m² Weight: 5,7 kg EULUMDAT files available Complies with European standards EN 60598 and CE certificate. - Conformity mark. LAMPS Module connected wattage 45W Luminaire connected wattage 60W Ambient température ta max = 55 °C NW Module désignation 15S163184NC-80 Colour température 4000K Colour rendering index Ra>80 Module luminous flux 7600Im Luminaire luminous flux 71441m Luminaire luminous efficiency 159 Im / W WW Module désignation 15S163184NC-80 Colour température 3000K Colour rendering index Ra>80 Module luminous flux 7222Im Luminaire luminous flux 6789Im Luminaire luminous efficiency 151 Im / W Standard colour température 4000K Also available with 3000K on request.
