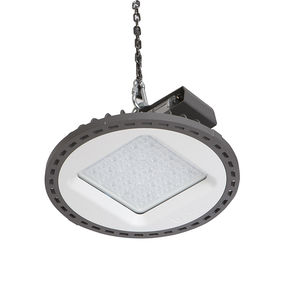

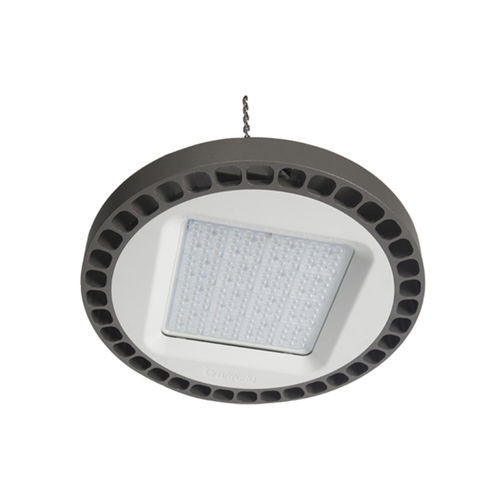

Hanging light fixture CIRCLE

LEDroundIP66

APPLICATION LED high-performance High-Bays with wide & narrow beam light distribution. PRODUCT DESCRIPTION High-Bays made of aluminium die cast, Aluminium and stainless steel. Clear 5mm safety glass Silicon rubber gasket Mounting bracket made of steel with electrostatic powder coating. Lens angle 15°-40°-60°-90° Colour standard MT-X6-23 optional RAL codes. LED power supply unit Input 100 –305V AC 50 / 60 Hz Power factor > 90% full load 6kV surge protection DALI controllable (optional) 0-10V / 1-10V controllable (optional) Safety class I Protection class IP66 Impact strenght IK09 Operation temperature -25°C / +55°C Wind catching area: 0,12 m² Weight: 9kg EULUMDAT files available Complies with European standards EN 60598 and CE certificate. - Conformity mark. LAMPS Module connected wattage 140W Luminaire connected wattage 150W Ambient température ta max = 55 °C NW Module désignation 15L228212NC-192 Colour température 4000K Colour rendering index Ra>80 Module luminous flux 22104Im Luminaire luminous flux 20777Im Luminaire luminous efficiency 148 Im / W WW Module désignation 15L228212NC-192 Colour température 3000K Colour rendering index Ra>80 Module luminous flux 210051m Luminaire luminous flux 197451m Luminaire luminous efficiency 140 Im / W Standard colour température 4000K Also available with 3000K on request.
