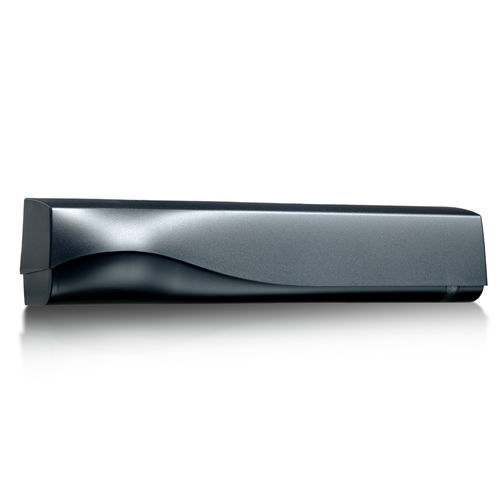

Presence detector IXIO-D

openingsurface-mountedoutdoor

OPENING AND SAFETY SENSOR FOR AUTOMATIC SLIDING DOORS TECHNOLOGY Radar & Active Infrared Description The IXIO-D is a sensor which combines radar technology for the activation of the door and infrared technology for the user protection. The unidirectional radar enables energy savings to be made. The three-dimensional infrared curtain protects people from any contact with the doors. Thanks to the LCD screen and the BEA DECODER app sensor configuration has never been easier. Features Energy-saving Due to the unidirectionality, the duration of the door opening cycle is shorter, which reduces heat loss from the building and saves energy. This also optimises the “airlock” function. Intuitive configuration Intuitive configuration with an LCD screen displaying texts and symbols (LCD graphics). Quick & easy overview of all settings via the BEA decoder app. Visual aids 4 red spotlights visible on the floor to adjust the angle of the failsafe curtain. Stable & reliable A 32-bit microprocessor optimises the processing of information coming from the environment, ensuring a stable performance throughout the year. 48 high-density infrared spotlights from 2 curtains protect users from any contact with the doors. TABLE OF SPECIFICATIONS Supply voltage: 12 V - 24 V AC +/-10% ; 12 V - 30 V DC +/-10% (to be operated from SELV compatible power supplies only) Power consumption: < 2.5 W Mounting height: 2 m to 3.5 m (local regulations may have an impact on the acceptable mounting height) Temperature range: -25°C to +55°C; 0-95% relative humidity, non condensing Degree of protection: IP54 Noise: < 70 dB Expected lifetime: 20 years
