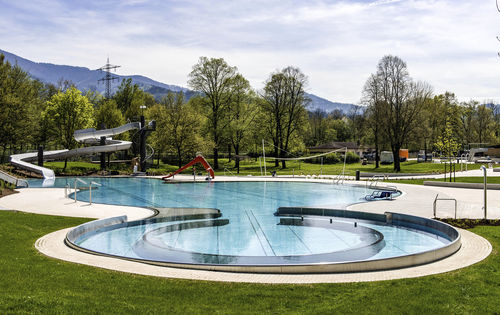

Outdoor pool Kollnau / Waldkirch, Germany
The old outdoor pool at Kollnau dated from 1968 and was comprehensively renovated in 2015. Berndorf Bäderbau fitted out three pools with a new stainless steel lining.
The non-swimmer pool takes the shape of three intersecting circles and features a large number of attractions.
The 50-metre-long swimmers pool can be used for competitions.
An extremely modern diving facility forms the highlight of the diving pool and is recognizable with its striking architecture.
All pools are made of stainless steel, material 1.4404 with level deck gutters
Swimmers pool
Max. Length: 50,00 m
Max. Width: 16,00 m
Water depth: 1,90-2,20 m
Water surface: 800,00 m²
Diving pool
Max. Length: 12,45 m
Max. Width: 11,75 m
Water depth: 4,00-4,10 m
Water surface: 146,28 m²
Non-swimmer pool
Max. Length: 51,00 m
Max. Width: 23,20 m
Water depth: 0,60-1,30 m
Water surface: 820,20 m²
Water surface total 1.766,48 m²
Attractions
Renovation – swimmers pool
- Pool bottom lane markers
- Entry steps
- Removable aluminium ladder
- 5 niche ladders
- Disabled entry
- 6 FINA starting blocks
- Backstroke turn indicators
- False start equipment
- Stainless steel kick panels
- Swimming lanes
Renovation – diving pool
- 2 niche ladders
- Diving facility with diving board and platform
Renovation – non-swimmer pool
- Entry steps
- 4 niche ladders
- Slide area
- Disabled entry
- Neck shower
- Waterfall shower
- Flow channel with underwater seats
