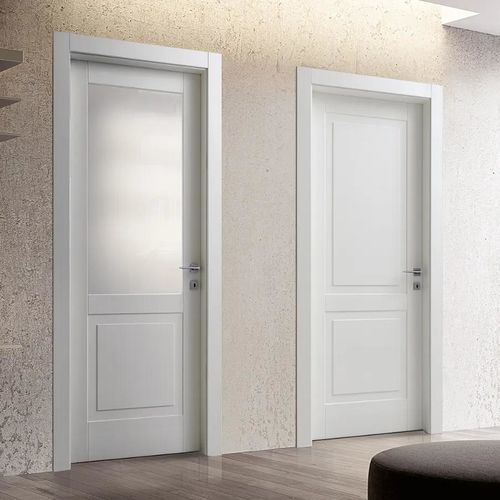

Interior door PANTOQUADRA

MDFrevolvingminimal

Overview
The PantoQuadra collection of hand-lacquered doors features a lacquer finish tested and certified by CATAS for colour fastness and anti-yellowing. Lacquering is applied with water-based paint to reduce environmental impact while maintaining long-lasting gloss. The range provides a minimalist, versatile aesthetic combined with technical features suited to demanding architectural projects.

Frame & materials
Doors are supplied with the TKT frame, a modern solution with a flush-fitting frame and cantilever edge cover on the pull side. Materials are IDRO, CARB and FSC® certified.

Details

• IDRO, CARB and FSC® certified TKT frame
• IPER 4 BOARD leaf edges on all 4 sides
• Hollow-core leaves with ECO honeycomb made from 100% recycled paper
• ACU PLUS acoustic seals as standard
• Concealed hinges and magnetic lock as standard
• Optional NO-GERMS antibacterial treatment
• Extensive customization possibilities
• Available with various opening mechanisms

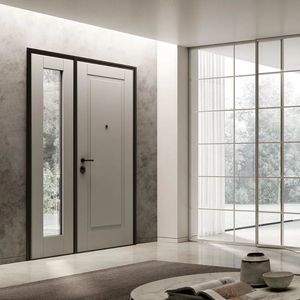

• Can be used as cladding for armoured doors
• Available for EI fire-rated doors
• Certified acoustic door versions available
• Adjustable anti-warping tie rods standard for heights over 2400 mm
• Supplied with matching IDRO MDF skirting board
• Mechanical components installed with TORX screws

Technical specifications

• Collection: PantoQuadra (hand-lacquered)
• Lacquer: CATAS-certified for colour fastness and anti-yellowing
• Finish: water-based lacquer
• Frame: TKT frame (IDRO, CARB and FSC® certified)
• Leaf construction: hollow-core with ECO honeycomb (100% recycled paper)
• Leaf edges: IPER 4 BOARD on all 4 sides
• Seals: ACU PLUS acoustic seals as standard
• Hardware: concealed hinges and magnetic lock; mechanical fixings with TORX screws
• Options: NO-GERMS antibacterial treatment; various opening mechanisms; acoustic certified versions; EI fire-rated versions; cladding for armoured doors
• Anti-warping: adjustable tie rods standard for heights > 2400 mm
• Accessories: matching IDRO MDF skirting board

Applications

• Interior architecture and design projects requiring a high-quality lacquered finish
• Residential, hospitality and commercial fit-outs
• Custom installations including fire-rated and armored door solutions
