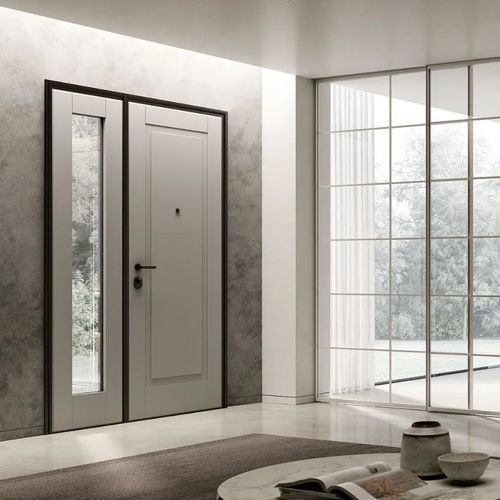

Wooden door covering LP1

pinefrosted glassMDF

Product description
The PantoQuadra collection of hand-lacquered doors is distinguished by top-quality lacquering certified by CATAS for colour fastness and anti-yellowing. The lacquered finish is applied with water-based paint to ensure a lower environmental impact and a durable, even appearance over time. The product features a minimalist, harmonious design and delivers high technical performance for architecture and interior-design professionals.

Key features

• Collection: PantoQuadra (hand-lacquered)
• Model: LP1
• Finish: matte white hand-lacquered
• CATAS certification for lacquering performance (colour fastness and anti-yellowing)
• Water-based lacquer for reduced environmental impact and long-lasting finish
• Supplied with TKT frame featuring a frame and cantilever edge cover flush-fitting on the pull side
• Manufactured using IDRO, CARB and FSC® certified materials
• IPER 4 BOARD edging on all four sides
• Drum-core leaf with 100% recycled-paper ECO honeycomb
• Acoustic seals ACU PLUS included
• Concealed hinges and magnetic lock included
• Available with anti-bacterial NO-GERMS treatment
• Available as covering for armored doors and for EI fire-rated doors
• Certified acoustic door version available
• Optional glass inserts: extra-clear frosted white or transparent
• Adjustable anti-warping tie rods for heights over 2400 mm
• Compatible skirting: MDF IDRO
• Mechanical fasteners installed with TORX screws

Technical specifications

• Model designation: LP1
• Product type: Armored-coated interior door covering
• Surface: hand-applied lacquer (hand-lacquered)
• Finish: matte white
• Certifications: CATAS (lacquering performance); FSC® for materials
• Paint: water-based lacquer
• Frame system: TKT frame with cantilever edge cover, flush-fitting on the pull side
• Leaf structure: drum-core with ECO honeycomb (100% recycled paper); selected fir battens; IPER 4 BOARD edging on all four sides; faux-solid profile
• Standard accessories: ACU PLUS acoustic seals; concealed hinges; magnetic lock; adjustable anti-warping tie rods for heights >2400 mm; TORX screws
• Options: NO-GERMS antibacterial treatment; armored-door covering; EI fire-rated versions; certified acoustic door; glass inserts (extra-clear frosted white or transparent); multiple opening types; MDF IDRO skirting
• Customization: high degree of customization available for finishes, dimensions and hardware
