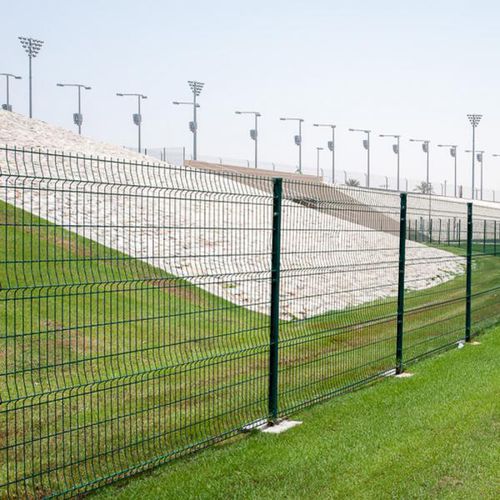

Fence with panels NYLOFOR 3D SUPER

for sports fieldsresidentialindustrial

The Nylofor® 3D Super system with specific 3D bend and very thick horizontal wires provides optimal protection and offers a unique design. Benefits: - Very high rigidity - High degree of rigidity - Long lifetime - Complete system PANELS Our 3D fencing, Nylofor 3D Super, are heavy welded mesh panels, 2500 mm wide and available in different heights. The panels have vertical barbs of 30 mm height on one side. Nylofor 3D Super panels incorporate pressed “V” shaped beam sections, which run horizontally along each panel. • Standard mesh: 200 x 50 mm • Mesh of “V”: 200 x 50 mm • Wire diameter: ○ Horizontal: 8.00 mm ○ Vertical: 5.00 m The panels are fixed laterally onto the posts and secured with anti-vandal metal security fixators. The H-shape welded tubular posts (70 x 44 mm) are galvanized. PES coated and supplied with a polyamide cap and accessories. For medium to high-security applications: Bekafix Ultra posts are recommended. Same system as Bekafix standard post, but much stronger thanks to Magnelis steel. Welded tubular posts (70 x 44 mm) in H-shape with punched holes for positioning/fixing of the panels. Posts are provided with a plastic cap. The panels are fixed on the front side of the posts by means of fixators and security bolts. The welded square tubular posts (60 x 60 mm) have inserts for fixing the panels and are covered with a plastic cap. Square post system with bent arm: possible. The Nylofor 3D Super fencing can be completed by the Robusta swing and sliding gates and Bekamatic gates.
