Welded mesh fence NYLOFOR F

industrialfor public spacesgalvanised steel

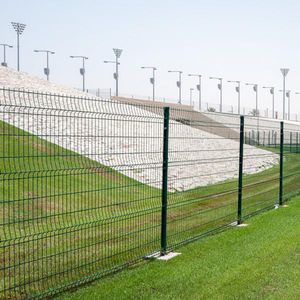

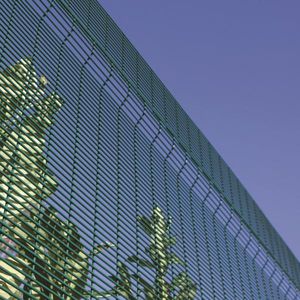

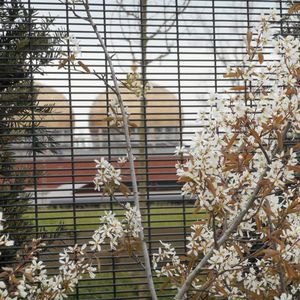

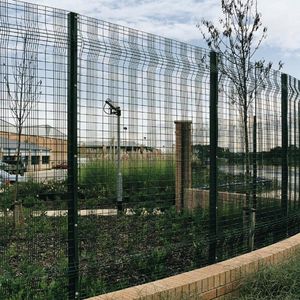

The Nylofor® F system consists of heavy welded mesh fence panels with horizontal flat wires providing maximum rigidity and an original design. Assets: - High rigidity - Modern look - Long lifetime - Quick installation - Complete & versatile system The flat panels are 2 500 mm width and in a range of heights: 630 to 2 430 mm. The mesh dimensions are 200 x 50 mm. The galvanized wires are extra heavy: the horizontal wires are 15 x 66 mm, the vertical wires have a diameter of 5 mm. RECOMMENDED POSTS FOR YOUR PANELS Nylofor - Twilfix posts The flat panels are fixed on the front side of the posts by means of fixators and security bolts. The welded square tubular posts (60 x 60 mm) have inserts for fixing the panels and are covered with a plastic cap. Bekafix The flat panels are fixed laterally onto the posts and secured with anti-vandal metal security fixators. The H-shape welded tubular posts (70 x 44 mm) are galvanized. PES coated and supplied with a polyamide cap and accessories. Izifix Post Lateral fixing of the Nylofor F in the Quixolid Plus post, without accessories. Perfect fixing of the curves of the panel in the post profile. The Quixolid posts (75 x 50 mm) are covered with a plastic cap. Bekafix Ultra For medium to high-security applications: Bekafix Super posts are recommended. Lateral fixing of the panels with special metal security clip with bolts. Welded tubular posts (100 x 54 mm) in H-shape with punched holes for positioning/fixing of the panels. Posts are provided with a plastic cap. D-Lox The flat panels are fixed on to the front side of the posts; they are first hung in the pre-mounted metal clamps.
