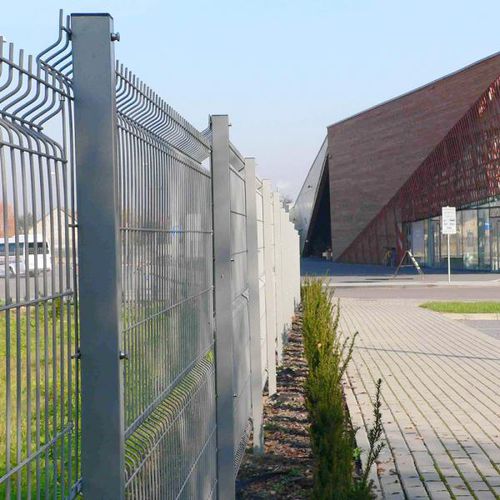

Post for endless fence installation
Posts for all Nylofor® F and 3D panel-systems. A flexible post endless distance results in a simple and economical installation.
Assets:
- "Endless" installation
- Fast installation
PROFILE
• Welded rectangular posts
• Cross section of the post: 60 x 40 x 2.0 mm
• Hard plastic cap
• I/V: 6.19 cm³
• With pre-drilled holes for fixing the corresponding screw hooks in M8 with break-off nut
ACCESSORIES
• Base plate (separate or welded)
• Bent arms (single or double sided)
• Clips for 3D panels + plier
• Clips for F panels + plier
INSTALLATION
All the posts are installed first. A space of 230 cm is provided between the first two posts at the start. In this way, the post extends 20 cm beyond the post and this makes it possible to attach the panels to each other with clamps. The advantage of this installation method is that the distance between the posts is less important, whereby a greater tolerance is
realised in the installation. The fixation system is very secure with hooks through the post and self-breaking nuts.
COATING TECHNIQUE AND COLOURS
Coating
Galvanised in-and outside (275 g/m2 - both sides combined) and plastic coated (min. 60 microns).
Colours
Green RAL 6005 - Anthracite RAL 7016
Other RAL colours on request.
